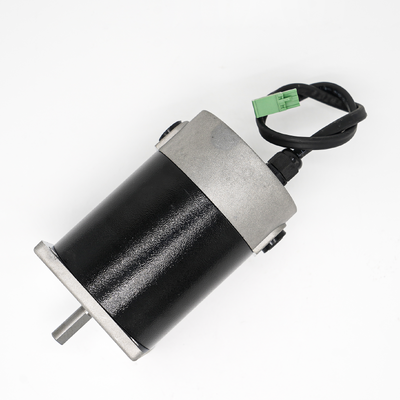

82ZY 82mm brushed dc motor for Automatic door

82ZY 82mm brushed dc motor for Automatic door

MOQ: 1000
Price: US$29.85
Standard Packaging: Cartoon Box
Delivery Period: 45days
Payment Method: T/T
Supply Capacity: 50000PCS/months
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE-EMC,UL
Model Number
DH-82ZY-01
RATED VOLTAGE:
24VDC
NO LOAD SPEED:
2100RPM
NO LOAD SPEED CURRENT:
0.49A
RATED SPEED:
1805RPM
RATED CURRENT:
3.03A
RATED TORQUE:
257.4mNm
RATED OUTPOWER:
48.66W
STALL TORQUE:
1.834Nm
STALL CURRENT:
18.71A
Magnetic Material:
Ferrite Magnet
IP Rating:
Customizable
Product Description

This is  DC brushed motor with diameter of 82mm,  all materials comply with UL 94V-0 standard.


Features:

  •  Compensating carbon brush.
  •  long lifetime and low noise.
  • Optional gearbox and encoder.
  • Customizable IP class.
  • Customizable motor performance.
  • Interference suppression optional.

Application:

  • Food and Beverage
  • Laboratory Instrumentation
  • Medical Equipment
  • Semiconductor
  • Business Machines
  • Industrial Automation
  • Transportation
  • Automatic door
