113ZY 113mm brushed dc motor for Industrial Automation

113ZY 113mm brushed dc motor for Industrial Automation

MOQ: 1000
Standard Packaging: Cartoon Box
Delivery Period: 45days
Payment Method: T/T
Supply Capacity: 20000PCS/months
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE-EMC,UL
Model Number
DH-113ZY-01
RATED VOLTAGE:
24VDC
NO LOAD SPEED:
2892RPM
NO LOAD SPEED CURRENT:
1.5A
RATED SPEED:
2732RPM
RATED CURRENT:
25.69A
RATED TORQUE:
1.623Nm
RATED OUTPOWER:
464.2W
STALL TORQUE:
29.42Nm
STALL CURRENT:
439A
Magnetic Material:
Ferrite Magnet
IP Rating:
Customizable
Product Description

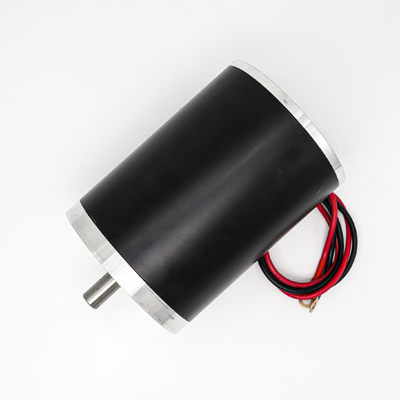

This is  DC brushed motor with diameter of 113mm, the maximum length of the motor is 200mm. Customization of motor performance, output shaft, mounting holes, etc. is available.


Features:

  •  Compensating carbon brush.
  •  long lifetime and low noise.
  • Optional gearbox and encoder.
  • Customizable IP class.
  • Customizable motor performance.
  • Interference suppression optional.

Application:

  • Food and Beverage
  • Laboratory Instrumentation
  • Medical Equipment
  • Semiconductor
  • Business Machines
  • Industrial Automation
  • Transportation

113ZY 113mm brushed dc motor for Industrial Automation 0

MODEL VOLTAGE NO   LOAD AT   MAXIMUM   EFFICIENCY STALL LENGTH
NOMNAL Speed Current Speed Current Torque Output Eff Current Torque
RPM A RPM A Kgf.cm N.m W % A Kgf.cm N.m mm
DH-113ZY-01 24.0V CONSTANT 2892 1.5 2732 25.69 16.5546 1.623 464.52 75.24 439 300.08  29.42 155










































1mN.m≈10.2g.cm≈0.142oz.in Motor voltage can be 12~230V or else,Please inquire your sales representative for output, performance and EMC solution.
