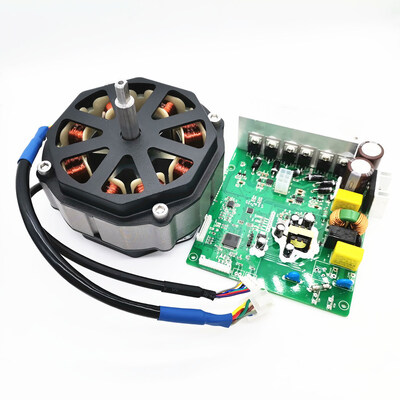

SR13530 Multifunctional food processor with switched reluctance motor and drive system

SR13530 Multifunctional food processor with switched reluctance motor and drive system

MOQ: 2000
Price: 86.5€
Standard Packaging: Cartoon Box
Delivery Period: 45days
Payment Method: T/T
Supply Capacity: 20000PCS/months
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE
Model Number
DH-SR13530
RATED VOLTAGE:
220VAC/50HZ
NO LOAD SPEED:
40~10000RPM
NO LOAD SPEED CURRENT:
1.2A MAX
RATED SPEED:
40~10000RPM
RATED CURRENT:
4.6A MAX
RATED TORQUE:
1.623Nm
RATED OUTPOWER:
630W MAX
STALL TORQUE:
3.2Nm
STALL CURRENT:
4.6A
Magnetic Material:
No Magnet
Product Description

This is a multi-functional food processor with a switched reluctance motor and drive system. It adopts the latest non-magnetic stone motor technology and core drive algorithm to achieve the function of constant speed ranging from 20 RPM (low speed) to 10,000 RPM (high speed), bringing culinary joy to European families. compliant with the CE and RoHS directives.

Features:
  • 20~10000RPM
  • Rated outpower 350W
  • No rare earth magnetic materials.
  • Compliant with the CE and RoHS directives


Dimensions:

Application:
  • Food and Beverage/Multifunctional food processor.
  • Laboratory Instrumentation
  • Medical Equipment
  • Semiconductor
  • Business Machines
  • Industrial Automation
  • Transportation

SR13530 Multifunctional food processor with switched reluctance motor and drive system 0


MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL LENGTH
NOMNAL Speed Current Speed Current Torque Output Eff Current Torque
RPM A RPM A Kgf.cm N.m W % A Kgf.cm N.m mm
DH-SR13530 220VAC 10000 1.2max 40~10000 4.6max 16.5546 1.623 350 86.24 4.6 32 3.2 70

1mN.m≈10.2g.cm≈0.142oz.in

Motor voltage can be 120~230V or else,Please inquire your sales representative for output, performance and EMC solution.
