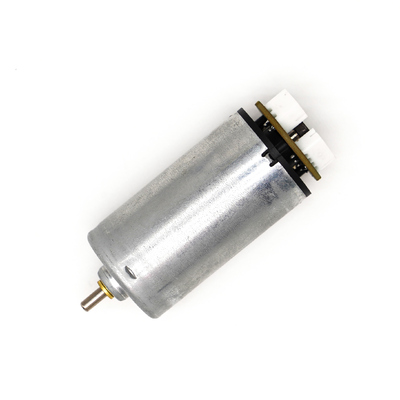

DEHE 10V 24V 2953 Brush Motor with Used in Electric Actuator
| MOQ: | 2000 |
| Price: | US$8.65 |
| Standard Packaging: | Cartoon Box |
| Delivery Period: | 45days |
| Payment Method: | T/T |
| Supply Capacity: | 50000PCS/months |
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE, RoHS
Model Number
DH-RK2953-02
RATED VOLT:
24VDC
NO LOAD SPEED:
5625RPM±10%
NO LOAD CURRENT:
0.5A MAX
RATED SPEED:
4900RPM±10%
RATED CURRENT:
2A MAX
RATED TORQUE:
51.55mNm
STALL TORQUE:
400mNm
STALL CURRENT:
10.1A
MOTOR TYPE:
Brush Dc Motor
Product Description
DEHE 2953 high-performance brushed motor, equipped with 4-level brush cylinder carbon brushes, 6-slot rotor, rare earth magnet structure, with internal integration of 2 inductors and 2 capacitors. It features high performance and long lifespan, and is mainly applied in car tailgates, electric actuators, etc.
Features:
- Compensating carbon brush
- High efficiency
- Long life
- EMI
Application:
- Power Tools
- Food and Beverage
- Laboratory Instrumentation
- Medical Equipment
- Semiconductor
- Business Machines
- Industrial Automation
- Transportation
- Automobile parts
Dimensions:
NOTES:
- Customizable output shaft dimensions.
- Motor voltage, motor speed and torque can be adjusted.
