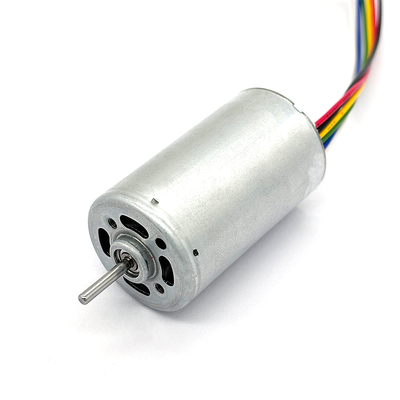

B2846 Brushless dc motor with driver
| MOQ: | 2000 |
| Price: | 10€ |
| Standard Packaging: | Cartoon Box |
| Delivery Period: | 45days |
| Payment Method: | T/T |
| Supply Capacity: | 50000PCS/months |
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE, RoHS
Model Number
DH-B2846-01
RATED VOLT:
12VDC
NO LOAD SPEED:
7000RPM±10%
NO LOAD CURRENT:
0.2A MAX
RATED SPEED:
6000RPM±10%
RATED CURRENT:
1A
RATED TORQUE:
12mNm
STALL TORQUE:
81mNm
STALL CURRENT:
5A
MOTOR TYPE:
Brushless Dc Motor
DRIVER:
Can Be Customized
Product Description
Features:
- Outer rotor BLDC motor
- Ball bearing
- High efficiency
- Long life
- Low noise
Application:
- Violent fan
- Power Tools
- Food and Beverage
- Laboratory Instrumentation
- Medical Equipment
- Semiconductor
- Business Machines
- Industrial Automation
- Transportation
Dimensions:
MOTOR DATA:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||||||||||||||||||||||||||||||
| OPERATING RANGE |
RATED | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||||||||||||||||||||||||||||||
| r/min | A | r/min | A | g.cm | W | g.cm | A | |||||||||||||||||||||||||||||||||
| DH-B2846-01 | 6V~12V | 12V | 7170 | 0.17 | 6095 | 0.903 | 122.2 | 7.64 | 814.8 | 5.059 | ||||||||||||||||||||||||||||||
| DH-B2846-02 | 8V~16V | 18V | 10833 | 0.20 | 9100 | 1.087 | 147.9 | 13.81 | 924.3 | 5.746 | ||||||||||||||||||||||||||||||
| DH-B2847 -03 | 8V~26V | 24V | 12370 | 0.21 | 10391 | 1.113 | 173.6 | 18.50 | 1085.1 | 5.852 | ||||||||||||||||||||||||||||||
NOTES:
- Customizable output shaft dimensions.
- Motor voltage can be 12V, 24V,36V,44V or else, while motor speed and torque can be adjusted.
- Can be customized driver
