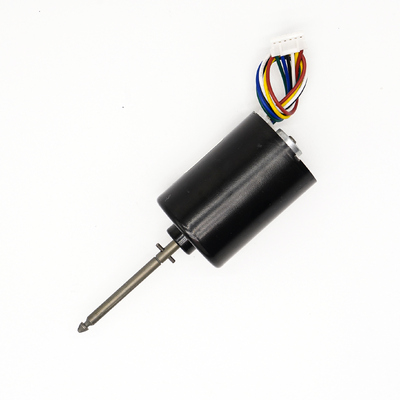

B3650 brushless dc motor For automatic soldering machine
| MOQ: | 2000 |
| Price: | 10€ |
| Standard Packaging: | Cartoon Box |
| Delivery Period: | 45days |
| Payment Method: | T/T |
| Supply Capacity: | 50000PCS/months |
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE, RoHS
Model Number
DH-B3650-04
Document
RATED VOLT:
24VDC
NO LOAD SPEED:
1760RPM±10%
NO LOAD CURRENT:
0.1A MAX
RATED SPEED:
1453RPM±10%
RATED CURRENT:
0.26A
RATED TORQUE:
24.3mNm
STALL TORQUE:
69.9mNm
STALL CURRENT:
1A
MOTOR TYPE:
Brushless Dc Motor
DRIVER:
Can Be Customized
Product Description
Features:
- inner rotor BLDC motor
- Ball bearing
- High efficiency
- Long life
- Low noise
Application:
- Violent fan
- Power Tools
- Food and Beverage
- Laboratory Instrumentation
- Medical Equipment
- Semiconductor
- Business Machines
- Industrial Automation
- Transportation
- automatic soldering machine
Dimensions:
MOTOR DATA:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | ||||||||||||||||||||||||||||||||||||
| OPERATING RANGE | RATED | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | |||||||||||||||||||||||||||||||
| r/min | A | r/min | A | g.cm | W | g.cm | A | |||||||||||||||||||||||||||||||||
| DH-B3650-01 | 8V~16V | 12V | 4304 | 0.28 | 3486 | 1.197 | 211.2 | 7.586 | 1116.6 | 5.104 | ||||||||||||||||||||||||||||||
| DH-B3650-02 | 8V~26V | 18V | 6693 | 0.3 | 5555 | 1.552 | 305.9 | 17.43 | 1799.5 | 7.537 | ||||||||||||||||||||||||||||||
| DH-B3650-03 | 8V~26V | 24V | 8458 | 0.4 | 6851 | 1.794 | 395.2 | 27.77 | 2079.8 | 7.628 | ||||||||||||||||||||||||||||||
NOTES:
- Customizable output shaft dimensions.
- Motor voltage can be 12V, 24V,36V,44V or else, while motor speed and torque can be adjusted.
- Can be customized driver
