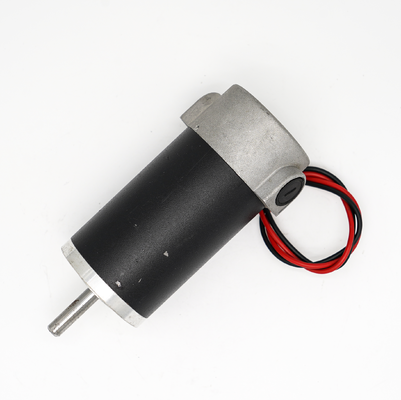

54mm Brushed DC Motor
| MOQ: | 1000 |
| Standard Packaging: | Cartoon Box |
| Delivery Period: | 45days |
| Payment Method: | T/T |
| Supply Capacity: | 50000PCS/months |
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE-EMC
Model Number
DH-54ZY-03
RATED VOLTAGE:
19.2V
NO LOAD SPEED:
3370RPM
NO LOAD SPEED CURRENT:
0.3A
RATED SPEED:
3090RPM
RATED CURRENT:
2.3A
RATED TORQUE:
120mNm
RATED OUTPOWER:
38W
STALL TORQUE:
1.44Nm
STALL CURRENT:
24.37A
Magnetic Material:
Ferrite Magnet
IP Rating:
Customizable
Product Description
The DC054 series brush commutated DC motor is a 54 mm diameter unit offered in 7 lengths with continuous output torques of 0.071 to 0.35 Nm.
Features:
Application:
