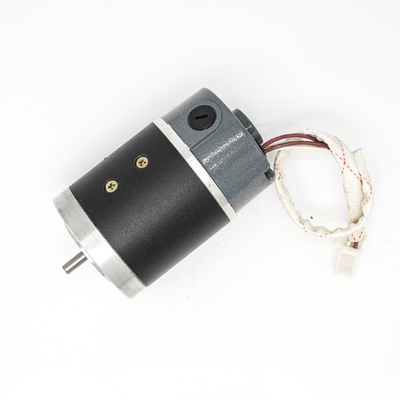

70ZYB 70mm PMDC Motor

70ZYB 70mm PMDC Motor

MOQ: 1000
Standard Packaging: Cartoon Box
Delivery Period: 45days
Payment Method: T/T
Supply Capacity: 50000PCS/months
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE-EMC
Model Number
DH-70ZYB-02
RATED VOLTAGE:
230VAC/50HZ RECT.
NO LOAD SPEED:
5000RPM
NO LOAD SPEED CURRENT:
0.05A
RATED SPEED:
4196RPM
RATED CURRENT:
0.26A
RATED TORQUE:
95.29mNm
RATED OUTPOWER:
41.87W
STALL TORQUE:
0.592Nm
STALL CURRENT:
1.36A
Magnetic Material:
Ferrite Magnet
IP Rating:
Customizable
Product Description

This is  DC brushed motor with  diameter of 70 mm,


Features:

  •  Compensating carbon brush.
  •  long lifetime and low noise.
  • Optional gearbox and encoder.
  • Customizable IP class.
  • Customizable motor performance.
  • Interference suppression optional.

Application:

  • Food and Beverage
  • Laboratory Instrumentation
  • Medical Equipment
  • Semiconductor
  • Business Machines
  • Industrial Automation
  • Transportation
