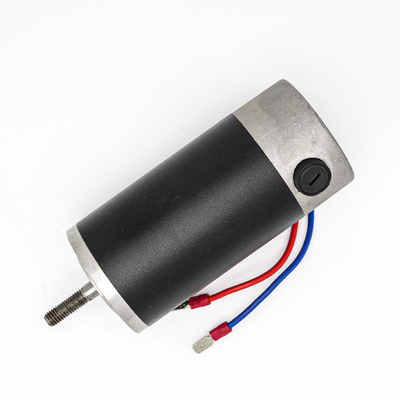

60mm Brushed DC Motor
| MOQ: | 1000 |
| Standard Packaging: | Cartoon Box |
| Delivery Period: | 45days |
| Payment Method: | T/T |
| Supply Capacity: | 50000PCS/months |
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE-EMC
Model Number
DH-60ZY-01
RATED VOLTAGE:
12V
NO LOAD SPEED:
4490RPM
NO LOAD SPEED CURRENT:
0.58A
RATED SPEED:
3790RPM
RATED CURRENT:
4.5A
RATED TORQUE:
90mNm
RATED OUTPOWER:
36W
STALL TORQUE:
0.577Nm
STALL CURRENT:
25.7A
Magnetic Material:
Ferrite Magnet
IP Rating:
Customizable
Product Description
The DC060 series brush commutated DC motor is a 60 mm diameter unit offered in 7 lengths with continuous output torques of 0.071 to 0.1 Nm.
Features:
Application:
