GR63X55 63mm PMDC Motor

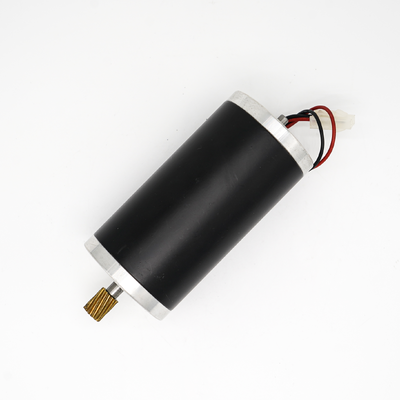

GR63X55 63mm PMDC Motor

MOQ: 1000
Standard Packaging: Cartoon Box
Delivery Period: 45days
Payment Method: T/T
Supply Capacity: 50000PCS/months
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE-EMC
Model Number
DH-63ZY-01
RATED VOLTAGE:
12VDC
NO LOAD SPEED:
3500RPM
NO LOAD SPEED CURRENT:
0.9A
RATED SPEED:
3000RPM
RATED CURRENT:
8.7A
RATED TORQUE:
240mNm
RATED OUTPOWER:
75.4W
STALL TORQUE:
1.45Nm
STALL CURRENT:
48A
Magnetic Material:
Ferrite Magnet
IP Rating:
Customizable
Product Description

This is  DC brushed motor with a diameter of 63mm, which can directly replace GR63X55.


Features:

  •  Compensating carbon brush.
  •  long lifetime and low noise.
  • Optional gearbox and encoder.
  • Customizable IP class.
  • Customizable motor performance.
  • Interference suppression optional.

Application:

  • Food and Beverage
  • Laboratory Instrumentation
  • Medical Equipment
  • Semiconductor
  • Business Machines
  • Industrial Automation
  • Transportation
