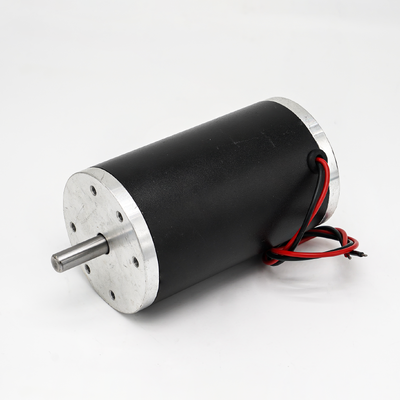

76ZY 76mm Brushed dc Motor

76ZY 76mm Brushed dc Motor

MOQ: 1000
Standard Packaging: Cartoon Box
Delivery Period: 45days
Payment Method: T/T
Supply Capacity: 50000PCS/months
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE-EMC
Model Number
DH-76ZY-02
RATED VOLTAGE:
24VDC
NO LOAD SPEED:
3200RPM
NO LOAD SPEED CURRENT:
0.5A
RATED SPEED:
2900RPM
RATED CURRENT:
6.3A
RATED TORQUE:
380mNm
RATED OUTPOWER:
118W
STALL TORQUE:
3.04Nm
STALL CURRENT:
46.9A
Magnetic Material:
Ferrite Magnet
IP Rating:
Customizable
Product Description

This is  DC brushed motor with a diameter of 76mm,


Features:

  •  Compensating carbon brush.
  •  long lifetime and low noise.
  • Optional gearbox and encoder.
  • Customizable IP class.
  • Customizable motor performance.
  • Interference suppression optional.

Application:

  • Food and Beverage
  • Laboratory Instrumentation
  • Medical Equipment
  • Semiconductor
  • Business Machines
  • Industrial Automation
  • Transportation
