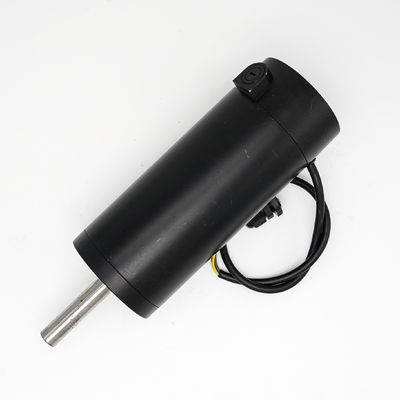

80ZY 80mm brushed dc motor for woodworking lathe

80ZY 80mm brushed dc motor for woodworking lathe

MOQ: 1000
Price: 37.5€
Standard Packaging: Cartoon Box
Delivery Period: 45days
Payment Method: T/T
Supply Capacity: 50000PCS/months
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE-EMC
Model Number
DH-80ZY-01
RATED VOLTAGE:
230VDC
NO LOAD SPEED:
3744RPM
NO LOAD SPEED CURRENT:
0.178A
RATED SPEED:
3278RPM
RATED CURRENT:
1.19A
RATED TORQUE:
594mNm
RATED OUTPOWER:
202W
STALL TORQUE:
4.58Nm
STALL CURRENT:
8.17A
Magnetic Material:
Ferrite Magnet
IP Rating:
Customizable
Product Description

This is  DC brushed motor with a diameter of 80mm,


Features:

  •  Compensating carbon brush.
  •  long lifetime and low noise.
  • Optional gearbox and encoder.
  • Customizable IP class.
  • Customizable motor performance.
  • Interference suppression optional.

Application:

  • Food and Beverage
  • Laboratory Instrumentation
  • Medical Equipment
  • Semiconductor
  • Business Machines
  • Industrial Automation
  • Transportation
  • woodworking lathe
