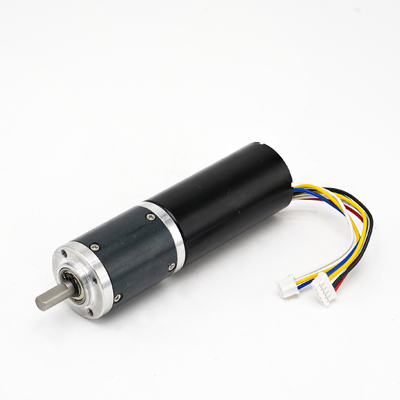

30mm B3063 planetary gear motor used in assistive walking robotic devicesrobot

30mm B3063 planetary gear motor used in assistive walking robotic devicesrobot

MOQ: 1000
Standard Packaging: Cartoon Box
Delivery Period: 45days
Payment Method: T/T
Supply Capacity: 50000PCS/months
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE-EMC,UL
Model Number
DH-28P2953-01
Product Description

This is 30mm B3063 planetary gear motor used in assistive walking robotic devicesrobot.

Features:
  • Voltage: 6~24VDC
  • Speed: 1-6000RPM
  • Torque: 1-25Kgf.cm
  • High Torque in Small Size
  • CW/CCW Running
  • Brushless dc motor
Application:
  • Food and Beverage
  • Laboratory Instrumentation
  • Medical Equipment
  • Semiconductor
  • Business Machines
  • Industrial Automation
  • Transportation
  • Automobile parts
Dimensions:

30mm B3063 planetary gear motor used in assistive walking robotic devicesrobot 0

Gear Ratio:
Gear Ratio Stage 1 2 3 4
Gear Ratio 3.7  13.7  51.0  187
5.2  19.0  71.0  262

27.0  99.0  367


139.0  514



720
Length(mm) 23.5  29.7  35.9  42.1
Efficiency(%) 80% 70% 60% 50%
Rated tolerance torque(Kgf.cm Max.)       3.0  8.0  18.0  25.0
Max momentary tolerance torque (Kgf.cm) 9.0  24.0  54.0  75.0
Reference Data:
Model Voltage No Load Rated Load
Nominal Speed Current Speed Current Torque
R/Min mA R/Min mA Kgf.cm
DH-30P3063-01 12.0  1622  ≤200 1378  ≤830 0.29
DH-30P3063-02 12.0  1158  ≤200 985  ≤830 0.40
DH-30P3063-03 12.0  438  ≤200 372  ≤830 0.93
DH-30P3063-04 12.0  316  ≤200 268  ≤830 1.29
DH-30P3063-05 12.0  222  ≤200 189  ≤830 1.83
DH-30P3063-06 12.0  118  ≤200 100  ≤830 2.97
DH-30P3063-07 12.0  85  ≤200 72  ≤830 4.13
DH-30P3063-08 12.0  61  ≤200 52  ≤830 5.76
DH-30P3063-09 12.0  43  ≤200 37  ≤830 8.09
DH-30P3063-10 12.0  32  ≤200 27  ≤830 9.07
DH-30P3063-11 12.0  23  ≤200 19  ≤830 12.71
DH-30P3063-12 12.0  16  ≤200 14  ≤830 17.80
DH-30P3063-13 12.0  12  ≤200 10  ≤830 25*
DH-30P3063-14 12.0  8  ≤200 7  ≤830 25*


1. Customizable output shaft dimensions.

2. Motor voltage can be 6V, 12V, 24V or else, while motor speed and torque can be adjusted.

3. The gearbox can also match with other motors.
