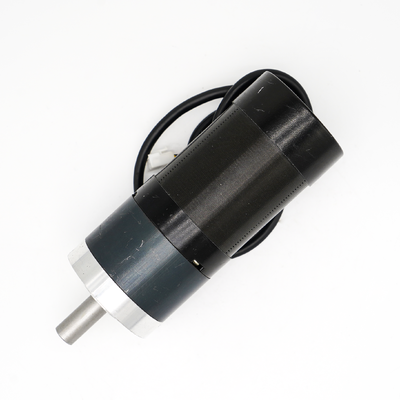

57mm 57P5775 brushless dc gear motor

57mm 57P5775 brushless dc gear motor

MOQ: 500
Price: US$49
Standard Packaging: Cartoon Box
Delivery Period: 45days
Payment Method: T/T
Supply Capacity: 50000PCS/months
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE-EMC,UL
Model Number
DH-57P5775-06
Document
DH-57P5775-XXK.pdf
RATED VOLT:
24VDC
NO LOAD SPEED:
105RPM±10%
NO LOAD CURRENT:
0.5A MAX
RATED SPEED:
73RPM±10%
RATED CURRENT:
3A MAX
RATED TORQUE:
0.51Nm Min.
IP RATING:
IP44
MOTOR TYPE:
BLDC MOTOR
RATIO:
43 :1
Product Description

The 57P5775 planetary gearless brushless motor is a high-performance power transmission product specially designed for medium and large power industrial and commercial scenarios. It integrates the efficient DC brushless motor technology with the precise planetary gear reduction structure deeply, featuring multiple advantages such as high torque output, long service life, low noise and low energy consumption. It can meet the requirements of stable power output in various fields such as automated equipment, intelligent equipment, and special operation machinery, and is the preferred solution for medium power transmission scenarios that combines performance and reliability.


Features:
  • Voltage: 6~310VDC
  • Speed: 5-3500RPM
  • Torque: 1-150Kgf.cm
  • High Torque in Small Size
  • CW/CCW Running
  • Brushless dc motor
  • Low noise
Application:
  • In the field of industrial automation: It can be applied to assembly line conveying equipment, small robotic arms, automatic assembly mechanisms, packaging machinery, etc., providing stable and precise power output to meet the requirements of continuous automated operations;
  • In the field of intelligent logistics: The walking and transmission mechanisms are designed to be compatible with AGV (Automated Guided Vehicle) automatic guiding vehicles and warehouse sorting equipment. The large torque output can meet the requirements of heavy-load transportation, and the long service life is suitable for high-frequency operation scenarios.
  • Medical device field: Suitable for rehabilitation training equipment, surgical instruments, testing and analysis instruments, etc. The low noise and high stability features meet the strict requirements of medical equipment.
  • In the fields of smart home and commercial equipment: compatible with automatic doors, smart storage cabinets, commercial cleaning equipment, etc. The installation is flexible, the operation is smooth, and it meets the frequent usage requirements of commercial scenarios.
  • Specialized operation field: It can be applied to small special robots, solar tracking brackets, and small agricultural operation equipment, etc. It can still provide stable and reliable power output even in complex working conditions.
Dimensions:

57mm 57P5775 brushless dc gear motor 0

Gear Ratio:

Gear Ratio Stage 1 2 3 4 5
Gear Ratio 4.0 12.0 43.0 150 525
5.00 16.0 49.0 172 713

23.0 58.0 204 967


76.0 276 1313


90.0 375.0 1782


107.0 429.0 2418
Length(mm) 37.8 49.3 60.8 72.3 75.0
Efficiency(%) 80% 70% 60% 50% 40%
Rated tolerance torque(Kgf.cm Max.) 10.0 40.0 150.0 150.0 150.0
Max momentary tolerance torque (Kgf.cm) 30.0 120.0 450.0 450.0 450.0
Reference Data:
Model Voltage No Load Rated Load
Speed Current Speed Current Torque
Nominal R/Min A R/Min A Kgf.cm
DH-57P5775-01 24.0 1125 ≤0.4 788 ≤3.0 6.40
DH-57P5775-02 24.0 900 ≤0.4 630 ≤3.0 8.00
DH-57P5775-03 24.0 375 ≤0.4 263 ≤3.0 16.80
DH-57P5775-04 24.0 281 ≤0.4 197 ≤3.0 22.40
DH-57P5775-05 24.0 196 ≤0.4 137 ≤3.0 32.20
DH-57P5775-06 24.0 105 ≤0.4 73 ≤3.0 51.60
DH-57P5775-07 24.0 92 ≤0.4 64 ≤3.0 58.80
DH-57P5775-08 24.0 78 ≤0.4 54 ≤3.0 69.60
DH-57P5775-09 24.0 59 ≤0.4 41 ≤3.0 91.20
DH-57P5775-10 24.0 50 ≤0.4 35 ≤3.0 108.00
DH-57P5775-11 24.0 42 ≤0.4 29 ≤3.0 128.40
DH-57P5775-12 24.0 30 ≤0.4 21 ≤3.0 150.00
DH-57P5775-13 24.0 26 ≤0.4 18 ≤3.0 150*
DH-57P5775-14 24.0 22 ≤0.4 15 ≤3.0 150*
DH-57P5775-15 24.0 9 ≤0.4 6 ≤3.0 150*
DH-57P5775-16 24.0 6 ≤0.4 4 ≤3.0 150*
NOTES:
  • Customizable output shaft dimensions.
  • Motor voltage can be 6V, 12V, 24V or else, while motor speed and torque can be adjusted.
  • The gearbox can also match with other motors.
