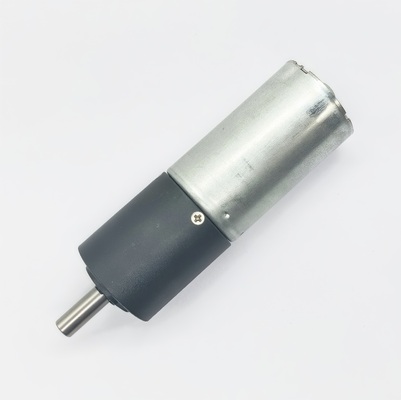

28mm Long-life and low-noise planetary bldc gear motor
| MOQ: | 1000 |
| Standard Packaging: | Cartoon Box |
| Delivery Period: | 45days |
| Payment Method: | T/T |
| Supply Capacity: | 100000PCS/months |
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE, RoHS
Model Number
DH-28P2846-01
Product Description
This is a 28mm Metal Planetary Gear Motor.
Features:
- Voltage: 6~24VDC
- Speed: 1-6000RPM
- Torque: 1-25Kgf.cm
- High Torque in Small Size
- CW/CCW Running
- Brushless dc motor
Application:
- Electric Curtain
- Electric actuator
- Food and Beverage
- Laboratory Instrumentation
- Medical Equipment
- Semiconductor
- Business Machines
- Industrial Automation
- Transportation
Dimensions:
Gear Ratio:
| Gear Ratio Stage | 1 | 2 | 3 | 4 | 5 | ||
| Gear Ratio | 3.7 | 13.7 | 51.0 | 187 | 699 | 3766 | |
| 5.2 | 19.0 | 71.0 | 262 | 977 | |||
| 27.0 | 99.0 | 367 | 1367 | ||||
| 139.0 | 514 | 1911 | |||||
| 720 | 2672 | ||||||
| Length(mm) | 21.7 | 27.4 | 33.2 | 39 | 44.8 | ||
| Efficiency(%) | 80% | 70% | 60% | 50% | 40% | ||
| Rated tolerance torque(Kgf.cm Max.) | 2.0 | 4.0 | 8.0 | 15.0 | 25.0 | ||
| Max momentary tolerance torque (Kgf.cm) | 6.0 | 12.0 | 35.0 | 60.0 | 75.0 | ||
Reference Data:
| Model | Voltage | No Load | Rated Load | ||||
| Nominal | Speed | Current | Speed | Current | Torque | ||
| R/Min | mA | R/Min | mA | Kgf.cm | |||
| DH-28P395-01 | 12.0 | 1622 | ≤200 | 1378 | ≤1000 | 0.44 | |
| DH-28P395-02 | 12.0 | 1158 | ≤200 | 985 | ≤1000 | 0.62 | |
| DH-28P395-03 | 12.0 | 438 | ≤200 | 372 | ≤1000 | 1.44 | |
| DH-28P395-04 | 12.0 | 316 | ≤200 | 268 | ≤1000 | 2.00 | |
| DH-28P395-05 | 12.0 | 222 | ≤200 | 189 | ≤1000 | 2.84 | |
| DH-28P395-06 | 12.0 | 118 | ≤200 | 100 | ≤1000 | 4.59 | |
| DH-28P395-07 | 12.0 | 85 | ≤200 | 72 | ≤1000 | 6.39 | |
| DH-28P395-08 | 12.0 | 61 | ≤200 | 52 | ≤1000 | 8.91 | |
| DH-28P395-09 | 12.0 | 43 | ≤200 | 37 | ≤1000 | 12.51 | |
| DH-28P395-10 | 12.0 | 32 | ≤200 | 27 | ≤1000 | 14.03 | |
| DH-28P395-11 | 12.0 | 23 | ≤200 | 19 | ≤1000 | 19.65 | |
| DH-28P395-12 | 12.0 | 16 | ≤200 | 14 | ≤1000 | 27.53 | |
| DH-28P395-13 | 12.0 | 12 | ≤200 | 10 | ≤1000 | 25* | |
| DH-28P395-14 | 12.0 | 8 | ≤200 | 7 | ≤1000 | 25* | |
| DH-28P395-15 | 12.0 | 9 | ≤200 | 7 | ≤1000 | 25* | |
| DH-28P395-16 | 12.0 | 6 | ≤200 | 5 | ≤1000 | 25* | |
- Customizable output shaft dimensions.
- Motor voltage can be 6V, 12V, 24V or else, while motor speed and torque can be adjusted.
- The gearbox can also match with other motors.
