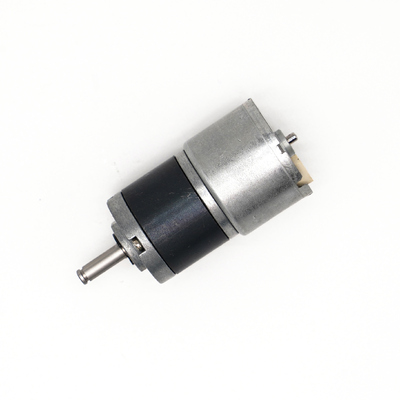

22mm 22P2418 dc brushless gear motor for antennas

22mm 22P2418 dc brushless gear motor for antennas

MOQ: 1000
Price: US$17.9
Standard Packaging: Cartoon Box
Delivery Period: 45days
Payment Method: T/T
Supply Capacity: 50000PCS/months
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE-EMC,UL
Model Number
DH-22P2418-22K
Document
DH-22P2418-22K.pdf
RATED VOLT:
12VDC
NO LOAD SPEED:
262RPM±10%
NO LOAD CURRENT:
0.1A MAX
RATED SPEED:
194RPM±10%
RATED CURRENT:
0.3A MAX
RATED TORQUE:
48.9mNm Min.
IP RATING:
IP40
MOTOR TYPE:
BLDC MOTOR
RATIO:
22 :1
Product Description

22P2418 Brushless Planetary Gearbox is a compact and precise transmission device specially designed for high-precision, long-life, and low-noise application scenarios. This series has a diameter of 22mm and adopts advanced brushless DC motor (BLDC) drive technology, combined with a multi-stage planetary gear system structure, aiming to meet the dual requirements of high torque density and smooth operation for miniature automation equipment in limited spaces. As a core power transmission component, it is widely applicable in smart home, medical devices, office automation, and high-end consumer electronics fields.

Features:
  • Voltage: 6~24VDC
  • Speed: 5-3500RPM
  • Torque: 0.5-4Kgf.cm
  • High Torque in Small Size
  • CW/CCW Running
  • Brushless dc motor
  • Low noise
Application:

  • Smart Home and Security

    Smart curtain motor, automatic window opener, intelligent door lock drive mechanism.
    Universal wheel drive for household vacuum cleaners, automatic height-adjustable TV stand.

  • Medical and health equipment

    Portable massage equipment, joint drive for electric wheelchairs, control of medical pump valves.
    Precise transmission for dental surgery tools and rehabilitation training aids.

  • Office and financial automation

    Internal cash-counting module and paper currency recognition and transmission mechanism of ATM machine.
    Paper feeding rollers of automatic document scanner and paper conveying mechanism of printer.

  • Robots and unmanned aircraft

    Open-source mechanical claw rotating joint, service robot chassis steering wheel.
    Pan-tilt stabilizer fine-tuning mechanism, small unmanned aerial vehicle landing gear retraction and extension system.

Dimensions:

22mm 22P2418 dc brushless gear motor for antennas 0

Gear Ratio:
Gear Ratio Stage 1 2 3 4 5
Gear Ratio 4 16 64 256 1024
4.75 19 76 304 1216

22.5 90 361 1444


107 428 2036



509 2418
Length(mm) 13.3 16.8 20.3 24 27.3
Efficiency(%) 80% 70% 60% 50% 40%
Rated tolerance torque(Kgf.cm Max.) 1.0 1.5 2 3 4
Max momentary tolerance torque (Kgf.cm) 3.0 4 6.0 9.0 12.0
NOTES:
  • Customizable output shaft dimensions.
  • Motor voltage can be 6V, 12V, 24V or else, while motor speed and torque can be adjusted.
  • The gearbox can also match with other motors.
