16mm Metal Planetary Gear Bldc Motor for 5G Antenna
| MOQ: | 1000 |
| Price: | US$15.0 |
| Standard Packaging: | Cartoon Box |
| Delivery Period: | 45days |
| Payment Method: | T/T |
| Supply Capacity: | 100000PCS/months |
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE, RoHS
Model Number
DH-16P1623-01
RATED VOLTAGE:
9V
NO LOAD SPEED:
44RPM
NO LOAD SPEED CURRENT:
300mA MAX
RATED SPEED:
35RPM
RATED CURRENT:
1A MAX
RATED TORQUE:
0.42 Nm.
STALL TORQUE:
0.79 Nm
STALL CURRENT:
2.2A MAX
Gear Material:
Metal
Net Weight:
46g
Ratio:
304:1
Product Description

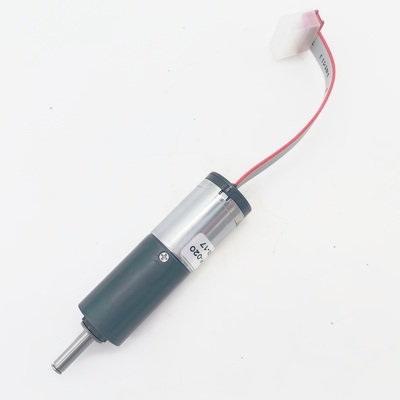

This is a 16mm Metal Planetary Gear Bldc Motor for 5G Antenna.
Features:
- Voltage: 9VDC
- Speed: 1-1500RPM
- Torque: 0.1-4Kgf.cm
- High Torque in Small Size
- CW/CCW Running
- -40℃~+125℃.
Application:
- Electric Curtain
- Safe and Locking
- Office Automation
- 3D Digital Technology
- Electric actuator
- Food and Beverage
- Laboratory Instrumentation
- Medical Equipment
- Semiconductor
- Business Machines
- Industrial Automation
- Transportation
- 5G Antenna
Dimensions:
Gear Ratio:
| Gear Ratio Stage | 1 | 2 | 3 | 4 | 5 | |
|---|---|---|---|---|---|---|
| Gear Ratio | 4 | 16 | 64 | 216 | 712 | |
| 4.75 | 19 | 76 | 304 | 1024 | ||
| 22.5 | 90 | 361 | 1216 | |||
| 107 | 428 | 1444 | ||||
| 144 | 509 | 2036 | ||||
| Length(mm) | 12.2 | 15.8 | 19.4 | 23 | 26.6 | |
| Efficiency(%) | 80% | 70% | 60% | 50% | 40% | |
| Rated tolerance torque(Kgf.cm Max.) | 0.3 | 0.5 | 1 | 3 | 4 | |
| Max momentary tolerance torque (Kgf.cm) | 1.5 | 2 | 3.5 | 9.5 | 12.5 | |
