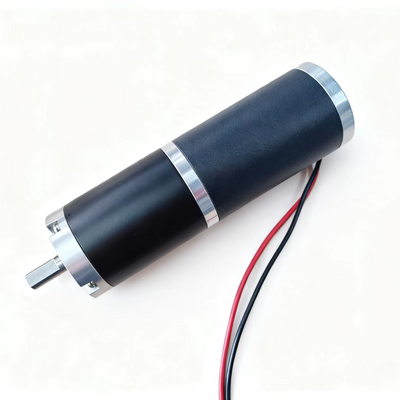

42mm 42P4280 24v dc planetary metal gear motor

42mm 42P4280 24v dc planetary metal gear motor

MOQ: 1000
Price: US$27.5
Standard Packaging: Cartoon Box
Delivery Period: 45days
Payment Method: T/T
Supply Capacity: 50000PCS/months
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE-EMC,UL
Model Number
DH-424280-12
Document
DH-42P4279-264K.pdf
RATED VOLT:
24VDC
NO LOAD SPEED:
17RPM±10%
NO LOAD CURRENT:
0.25A MAX
RATED SPEED:
14RPM±10%
RATED CURRENT:
3A MAX
RATED TORQUE:
0.5Nm Min.
IP RATING:
IP54
MOTOR TYPE:
PMDC MOTOR
RATIO:
264:1
Product Description

42P42ZY is a high-performance miniature planetary gear reduction motor, specially designed for applications with strict requirements for space, precision and torque. This model motor combines a DC motor with a precise planetary gear reduction box, and adopts a coaxial layout. It features a small size, high power density, smooth operation and low noise, among other notable characteristics.

Features:
  • Voltage: 6~36VDC
  • Speed: 1-3500RPM
  • Torque: 1-120Kgf.cm
  • High Torque in Small Size
  • CW/CCW Running
  • Brush dc motor
  • Low noise
Application:

The 42P42ZY planetary gear motor, with its outstanding performance, is widely applied in the following fields:

  • Industrial Automation: Used for joint drive of robotic arms, conveyor belt control, automatic assembly lines and tension controllers.
  • Services and Special Robots: As the wheeled drive unit of mobile robots or the actuators of robotic hands, requiring high precision and high response speed.
  • Smart Home and Security: Applied to smart door locks, electric curtains, automatic doors and surveillance pan-tilt cameras.
  • Medical Devices: For infusion pumps, surgical robot-assisted drive, etc., equipment with extremely high requirements for noise and stability.
  • Automotive Electronics: Electric vehicle seat adjustment, window raising/lowering, air conditioning vent control, etc.
Dimensions:

42mm 42P4280 24v dc planetary metal gear motor 0

Gear Ratio:

Gear Ratio Stage 1 2 3 4
Gear Ratio 3.7 14.0 51.0 187
5.18 19.0 71.0 262

27.0 99.0 367


139.0 514



720
Length(mm) 32.2 42.5 52.7 62.9
Efficiency(%) 80% 70% 60% 50%
Rated tolerance torque(Kgf.cm Max.) 10.0 30.0 60.0 120.0
Max momentary tolerance torque (Kgf.cm) 30.0 90.0 180.0 300.0
Reference Data:
Model Voltage
Nominal		 No Load Rated Load
Speed Current Speed Current Torque
R/Min mA R/Min mA Kgf.cm
DH-42P4280-01 24.0 1649 ≤250 1405 ≤2450 2.37
DH-42P4280-02 24.0 1178 ≤250 1004 ≤2450 3.32
DH-42P4280-03 24.0 436 ≤250 371 ≤2450 7.86
DH-42P4280-04 24.0 321 ≤250 274 ≤2450 10.67
DH-42P4280-05 24.0 226 ≤250 193 ≤2450 15.16
DH-42P4280-06 24.0 120 ≤250 102 ≤2450 24.54
DH-42P4280-07 24.0 86 ≤250 73 ≤2450 34.17
DH-42P4280-08 24.0 62 ≤250 53 ≤2450 47.64
DH-42P4280-09 24.0 44 ≤250 37 ≤2450 50*
DH-42P4280-10 24.0 33 ≤250 28 ≤2450 50*
DH-42P4280-11 24.0 23 ≤250 20 ≤2450 50*
DH-42P4280-12 24.0 17 ≤250 14 ≤2450 50*
DH-42P4280-13 24.0 12 ≤250 10 ≤2450 50*
DH-42P4280-14 24.0 8 ≤250 7 ≤2450 50*
NOTES
  • Customizable output shaft dimensions.
  • Motor voltage can be 6V, 12V, 24V or else, while motor speed and torque can be adjusted.
  • The gearbox can also match with other motors.
