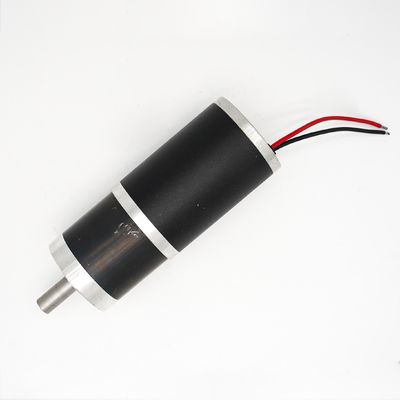

57mm 57P60ZY permanent magnet dc gear motor
| MOQ: | 500 |
| Price: | US$82 |
| Standard Packaging: | Cartoon Box |
| Delivery Period: | 45days |
| Payment Method: | T/T |
| Supply Capacity: | 50000PCS/months |
The 57P60ZY planetary gear with brush motor is a high-performance power component specially designed for small and medium power transmission scenarios. It integrates a high-precision planetary gear reduction structure with mature DC brushless drive technology, balancing large torque output, compact structure and cost advantages. It is widely applicable to various fields such as industrial automation, intelligent equipment, and small-scale construction machinery, and is an ideal choice for scenarios with dual requirements for power output and installation space.
Product performance advantages
- High power density, suitable for compact spaces.
Thanks to the design advantages of the planetary gear structure, the outer diameter of the 57P60ZY is only 57mm. While maintaining a compact volume, it can output a torque much greater than that of ordinary reducers of the same specification. It can obtain a greater power output from a small-sized transmission component, perfectly solving the problem of insufficient power in the miniaturization design of equipment.
- High transmission efficiency with low energy consumption loss.
The planetary gear transmission itself has a much higher transmission efficiency than the worm gear and worm reducer. Coupled with the reduction in friction loss due to high-precision processing, the overall transmission efficiency of this motor can reach over 85%. It has low energy consumption loss. Under the same input power, it can output more effective torque. This not only reduces operating energy consumption but also reduces the overheating problem during long-term operation, further enhancing the operational stability and service life.
- Outstanding value for money, with wide adaptability.
Compared with the precise brushless planetary motor, the brushed structure design and manufacturing cost are lower. Meanwhile, the mature technical route ensures the reliability of the product. For most scenarios that require moderate control accuracy and pursue cost control, it is a more cost-effective choice. The product supports customization for processing, and parameters can be adjusted according to the special requirements of customers such as voltage, speed, torque, and installation method, to meet the differentiated needs of different industries.
- Voltage: 6~230VDC
- Speed: 5-3500RPM
- Torque: 1-150Kgf.cm
- High Torque in Small Size
- CW/CCW Running
- Brush dc motor
- Low noise
The 57P60ZY planetary gear motor, with its outstanding performance, is widely applied in the following fields:
- Industrial Automation: Used for joint drive of robotic arms, conveyor belt control, automatic assembly lines and tension controllers.
- Services and Special Robots: As the wheeled drive unit of mobile robots or the actuators of robotic hands, requiring high precision and high response speed.
- Smart Home and Security: Applied to smart door locks, electric curtains, automatic doors and surveillance pan-tilt cameras.
- Medical Devices: For infusion pumps, surgical robot-assisted drive, etc., equipment with extremely high requirements for noise and stability.
- Automotive Electronics: Electric vehicle seat adjustment, window raising/lowering, air conditioning vent control, etc.
Gear Ratio:
| Gear Ratio Stage | 1 | 2 | 3 | 4 | 5 | |
|---|---|---|---|---|---|---|
| Gear Ratio | 4.0 | 12.0 | 43.0 | 150 | 525 | |
| 5.00 | 16.0 | 49.0 | 172 | 713 | ||
| 23.0 | 58.0 | 204 | 967 | |||
| 76.0 | 276 | 1313 | ||||
| 90.0 | 375.0 | 1782 | ||||
| 107.0 | 429.0 | 2418 | ||||
| Length(mm) | 37.8 | 49.3 | 60.8 | 72.3 | 75.0 | |
| Efficiency(%) | 80% | 70% | 60% | 50% | 40% | |
| Rated tolerance torque(Kgf.cm Max.) | 10.0 | 40.0 | 150.0 | 150.0 | 150.0 | |
| Max momentary tolerance torque (Kgf.cm) | 30.0 | 120.0 | 450.0 | 450.0 | 450.0 | |
| Model | Voltage | No Load | Rated Load | ||||
|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | |||
| R/Min | A | R/Min | A | Kgf.cm | |||
| DH-57P6095-01 | 24.0 | 1050 | ≤0.6 | 900 | ≤4.5 | 3.52 | |
| DH-57P6095-02 | 24.0 | 840 | ≤0.6 | 720 | ≤4.5 | 4.40 | |
| DH-57P6095-03 | 24.0 | 350 | ≤0.6 | 300 | ≤4.5 | 9.24 | |
| DH-57P6095-04 | 24.0 | 263 | ≤0.6 | 225 | ≤4.5 | 12.32 | |
| DH-57P6095-05 | 24.0 | 183 | ≤0.6 | 157 | ≤4.5 | 17.71 | |
| DH-57P6095-06 | 24.0 | 98 | ≤0.6 | 84 | ≤4.5 | 28.38 | |
| DH-57P6095-07 | 24.0 | 86 | ≤0.6 | 73 | ≤4.5 | 32.34 | |
| DH-57P6095-08 | 24.0 | 72 | ≤0.6 | 62 | ≤4.5 | 38.28 | |
| DH-57P6095-09 | 24.0 | 55 | ≤0.6 | 47 | ≤4.5 | 50.16 | |
| DH-57P6095-10 | 24.0 | 47 | ≤0.6 | 40 | ≤4.5 | 59.40 | |
| DH-57P6095-11 | 24.0 | 39 | ≤0.6 | 34 | ≤4.5 | 70.62 | |
| DH-57P6095-12 | 24.0 | 28 | ≤0.6 | 24 | ≤4.5 | 82.50 | |
| DH-57P6095-13 | 24.0 | 24 | ≤0.6 | 21 | ≤4.5 | 94.60 | |
| DH-57P6095-14 | 24.0 | 21 | ≤0.6 | 18 | ≤4.5 | 112.20 | |
| DH-57P6095-15 | 24.0 | 8 | ≤0.6 | 7 | ≤4.5 | 150* | |
| DH-57P6095-16 | 24.0 | 6 | ≤0.6 | 5 | ≤4.5 | 150* | |
- Customizable output shaft dimensions.
- Motor voltage can be 6V, 12V, 24V or else, while motor speed and torque can be adjusted.
- The gearbox can also match with other motors.
