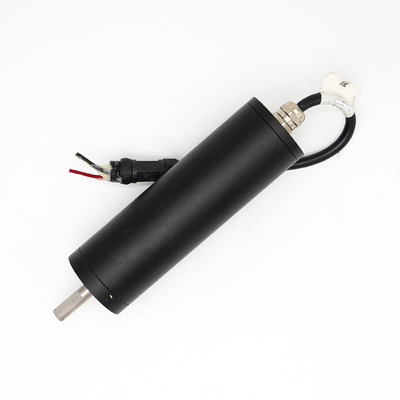

36mm 36P555 planetary gear motor IP67 waterproof

36mm 36P555 planetary gear motor IP67 waterproof

MOQ: 1000
Price: US$29.85
Standard Packaging: Cartoon Box
Delivery Period: 45days
Payment Method: T/T
Supply Capacity: 50000PCS/months
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE-EMC,UL
Model Number
DH-36P555-27K-IP68
RATED VOLT:
12VDC
NO LOAD SPEED:
300RPM±10%
NO LOAD CURRENT:
0.6A MAX
RATED SPEED:
260RPM±10%
RATED CURRENT:
2A MAX
RATED TORQUE:
0.5Nm Min.
IP RATING:
IP67
Product Description

This product is an integrated 36mm outer diameter DC brushless/brushed planetary gear reduction motor, specially designed for harsh environments. Its key features include an IP68 high-level waterproof and dustproof protection capability. This motor employs a compact planetary gear transmission mechanism, featuring high torque density, low noise, and long lifespan. It is widely applicable to underwater equipment, outdoor intelligent security systems, explosion-proof industrial robotic arms, and special robot joints, among other scenarios.

Protection level: IP68
Fully dust-proof.
It can work for a long time while submerged in water (usually tested under conditions of 1-meter water depth for more than 30 minutes; the specific duration may vary depending on the agreement). The sealing is achieved through O-rings and a dedicated encapsulation adhesive process.

IP68 sealing process
Shaft seal design: The output shaft uses a double lip-mouth frame oil seal combined with magnetic fluid sealing or special rubber O-rings to effectively prevent water and moisture from entering.
Shell seal: The joint surfaces of the front and rear covers are welded by laser or tightened with high-strength screws and treated with sealing glue to ensure overall airtightness.
Lead wire seal: The cable outlet end uses an injection-molded sealed connector to prevent moisture from seeping into the conductor along the wire.

Features:
  • Voltage: 6~220VDC
  • Speed: 1-6000RPM
  • Torque: 1-25Kgf.cm
  • High Torque in Small Size
  • CW/CCW Running
  • Brush dc motor
  • Low noise
Application:

Underwater operation equipment: Underwater robots (ROV), submersible propellers, underwater camera mounts, utilizing IP68 characteristics to achieve long-term stable operation underwater.
Explosion-proof industrial environment: Automated conveying lines, valve drive devices, and mixing equipment in petrochemicals, and food processing (dust environments).
Outdoor intelligent facilities: Intelligent curtain motor, outdoor surveillance mounts, solar tracking supports, requiring resistance to rain, dust, and extreme weather.
Specialized medical and instruments: Portable medical equipment or precision analytical instruments with sterile, waterproof, and explosion-proof requirements for driving units.

  • Food and Beverage
  • Laboratory Instrumentation
  • Medical Equipment
  • Semiconductor
  • Business Machines
  • Industrial Automation
  • Transportation
  • Automobile parts
Dimensions:

36mm 36P555 planetary gear motor IP67 waterproof 0

Gear Ratio:

Gear Ratio Stage 1 2 3 4 5
Gear Ratio 3.7  13.7  51.0  187  699  3766
5.2  19.0  71.0  262  977

27.0  99.0  367  1367


139.0  514  1911



720  2672
Length(mm) 25.5  32.5  39.5  46.5  54.0
Efficiency(%) 80% 70% 60% 50% 40% 40%
Rated tolerance torque(Kgf.cm Max.)       5.0  15.0  50.0  50.0  50.0  50.0
Max momentary tolerance torque (Kgf.cm) 15.0  50.0  150.0  150.0  150.0  150.0
Reference Data:
Model Voltage No Load Rated Load
Nominal Speed Current Speed Current Torque
R/Min mA R/Min mA Kgf.cm
DH-36P555-01 24.0  1622  ≤400 1351  ≤1300 0.95
DH-36P555-02 24.0  1158  ≤400 965  ≤1300 1.33
DH-36P555-03 24.0  438  ≤400 365  ≤1300 3.07
DH-36P555-04 24.0  316  ≤400 263  ≤1300 4.26
DH-36P555-05 24.0  222  ≤400 185  ≤1300 6.05
DH-36P555-06 24.0  118  ≤400 98  ≤1300 9.79
DH-36P555-07 24.0  85  ≤400 70  ≤1300 13.63
DH-36P555-08 24.0  61  ≤400 51  ≤1300 19.01
DH-36P555-09 24.0  43  ≤400 36  ≤1300 26.69
DH-36P555-10 24.0  32  ≤400 27  ≤1300 29.92
DH-36P555-11 24.0  23  ≤400 19  ≤1300 41.92
DH-36P555-12 24.0  16  ≤400 14  ≤1300 50*
DH-36P555-13 24.0  12  ≤400 10  ≤1300 50*
DH-36P555-14 24.0  8  ≤400 7  ≤1300 50*
DH-36P555-15 24.0  9  ≤400 7  ≤1300 50*
DH-36P555-16 24.0  6  ≤400 5  ≤1300 50*

NOTES:

1. Customizable output shaft dimensions.

2. Motor voltage can be 6V, 12V, 24V or else, while motor speed and torque can be adjusted.

3. The gearbox can also match with other motors.
