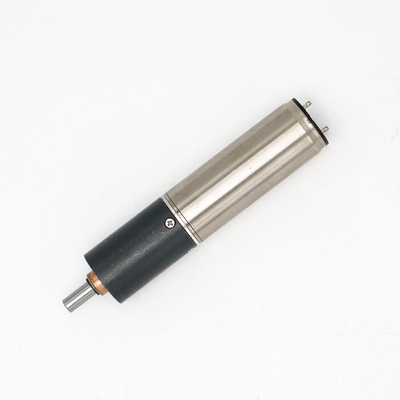

16mm coreless gear motor is used in electric curtains.
| MOQ: | 1000 |
| Standard Packaging: | Cartoon Box |
| Delivery Period: | 45days |
| Payment Method: | T/T |
| Supply Capacity: | 100000PCS/months |
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE, RoHS
Model Number
DH-16P1642-256K
Product Description
This is a 16mm Metal Planetary Gear Coreless Motor.
Features:
| Voltage: 6.0-24VDC | High Torque in Small Size |
| Speed: 1-3000RPM | CW/CCW Running |
| Torque: 0.1-4Kgf.cm | Coreless motor |
Application:
- Electric Curtain
- Safe and Locking
- Office Automation
- 3D Digital Technology
- Electric actuator
- Food and Beverage
- Laboratory Instrumentation
- Medical Equipment
- Semiconductor
- Business Machines
- Industrial Automation
- Transportation
Dimensions:
Gear Ratio:
| Gear Ratio Stage | 1 | 2 | 3 | 4 | 5 | |
| Gear Ratio | 4 | 16 | 64 | 256 | 712 | |
| 4.75 | 19 | 76 | 304 | 1024 | ||
| 22.5 | 90 | 361 | 1216 | |||
| 107 | 428 | 1444 | ||||
| 509 | 2036 | |||||
| Length(mm) | 12.2 | 15.8 | 19.4 | 23 | 26.6 | |
| Efficiency(%) | 80% | 70% | 60% | 50% | 40% | |
| Rated tolerance torque(Kgf.cm Max.) | 0.3 | 0.5 | 1 | 3 | 4 | |
| Max momentary tolerance torque (Kgf.cm) | 1.5 | 2 | 3.5 | 9.5 | 12.5 | |
Reference Data:
| Model | Voltage | No Load | Rated Load | ||||
| Speed | Current | Speed | Current | Torque | |||
| Nominal | R/Min | mA | R/Min | mA | Kgf.cm | ||
| DH-16P1642-01 | 24.0 | 4423 | ≤200 | 3975 | ≤1000 | 76.8 | |
| DH-16P1642-02 | 24.0 | 1106 | ≤200 | 994 | ≤1000 | 425.6 | |
| DH-16P1642-03 | 24.0 | 786 | ≤200 | 707 | ≤1000 | 598.5 | |
| DH-16P1642-04 | 24.0 | 276 | ≤200 | 248 | ≤1000 | 1459.2 | |
| DH-16P1642-05 | 24.0 | 233 | ≤200 | 209 | ≤1000 | 1732.8 | |
| DH-16P1642-06 | 24.0 | 197 | ≤200 | 177 | ≤1000 | 2052 | |
| DH-16P1642-07 | 24.0 | 165 | ≤200 | 149 | ≤1000 | 2439.6 | |
| DH-16P1642-08 | 24.0 | 123 | ≤200 | 110 | ≤1000 | 3283.2 | |
| DH-16P1642-09 | 24.0 | 69 | ≤200 | 62 | ≤1000 | 4864 | |
| DH-16P1642-10 | 24.0 | 58 | ≤200 | 52 | ≤1000 | 5776 | |
| DH-16P1642-11 | 24.0 | 49 | ≤200 | 44 | ≤1000 | 4000* | |
| DH-16P1642-12 | 24.0 | 41 | ≤200 | 37 | ≤1000 | 4000* | |
| DH-16P1642-13 | 24.0 | 35 | ≤200 | 31 | ≤1000 | 4000* | |
| DH-16P1642-14 | 24.0 | 25 | ≤200 | 25 | ≤1000 | 4000* | |
| DH-16P1642-15 | 24.0 | 17 | ≤200 | 16 | ≤1000 | 4000* | |
| DH-16P1642-16 | 24.0 | 12 | ≤200 | 11 | ≤1000 | 4000* | |
NOTES:
- Customizable output shaft dimensions.
- Motor voltage can be 6V, 12V, 24V or else, while motor speed and torque can be adjusted.
- The gearbox can also match with other motors.
