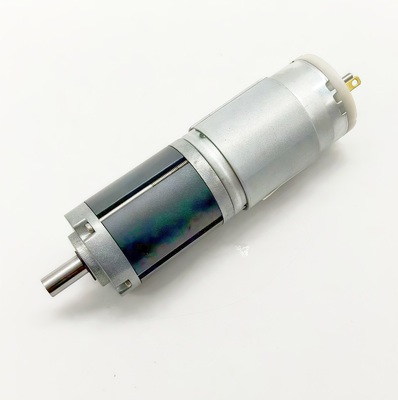

28P395 28mm Metal Planetary dc gear motor
| MOQ: | 1000 |
| Standard Packaging: | Cartoon Box |
| Delivery Period: | 45days |
| Payment Method: | T/T |
| Supply Capacity: | 100000PCS/months |
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE, RoHS
Model Number
DH-28P395-01
Product Description
This is a 28mm Metal Planetary Gear Motor.
Features:
- Voltage: 6~24VDC
- Speed: 1-6000RPM
- Torque: 1-25Kgf.cm
- High Torque in Small Size
- CW/CCW Running
- Brush dc motor
Application:
- Electric Curtain
- Electric actuator
- Food and Beverage
- Laboratory Instrumentation
- Medical Equipment
- Semiconductor
- Business Machines
- Industrial Automation
- Transportation
Dimensions:
Gear Ratio:
| Gear Ratio Stage | 1 | 2 | 3 | 4 | 5 | ||
| Gear Ratio | 3.3 | 11.2 | 37.7 | 126 | 424 | 2142 | |
| 4.6 | 15.5 | 52.0 | 174 | 586 | |||
| 21.5 | 72.0 | 242 | 810 | ||||
| 99.6 | 334 | 1120 | |||||
| 462 | 1549 | ||||||
| Length(mm) | 21.7 | 27.4 | 33.2 | 39 | 44.8 | ||
| Efficiency(%) | 80% | 70% | 60% | 50% | 40% | ||
| Rated tolerance torque(Kgf.cm Max.) | 2.0 | 4.0 | 8.0 | 15.0 | 25.0 | ||
| Max momentary tolerance torque (Kgf.cm) | 6.0 | 12.0 | 35.0 | 60.0 | 75.0 | ||
Reference Data:
| Model | Voltage | No Load | Rated Load | ||||
| Nominal | Speed | Current | Speed | Current | Torque | ||
| R/Min | mA | R/Min | mA | Kgf.cm | |||
| DH-28P395-01 | 12.0 | 1818 | ≤200 | 1545 | ≤1000 | 0.32 | |
| DH-28P395-02 | 12.0 | 1304 | ≤200 | 1109 | ≤1000 | 0.44 | |
| DH-28P395-03 | 12.0 | 536 | ≤200 | 455 | ≤1000 | 0.94 | |
| DH-28P395-04 | 12.0 | 387 | ≤200 | 329 | ≤1000 | 1.30 | |
| DH-28P395-05 | 12.0 | 279 | ≤200 | 237 | ≤1000 | 1.81 | |
| DH-28P395-06 | 12.0 | 159 | ≤200 | 135 | ≤1000 | 2.71 | |
| DH-28P395-07 | 12.0 | 115 | ≤200 | 98 | ≤1000 | 3.74 | |
| DH-28P395-08 | 12.0 | 83 | ≤200 | 71 | ≤1000 | 5.18 | |
| DH-28P395-09 | 12.0 | 60 | ≤200 | 51 | ≤1000 | 7.17 | |
| DH-28P395-10 | 12.0 | 48 | ≤200 | 40 | ≤1000 | 7.56 | |
| DH-28P395-11 | 12.0 | 34 | ≤200 | 29 | ≤1000 | 10.44 | |
| DH-28P395-12 | 12.0 | 25 | ≤200 | 21 | ≤1000 | 14.52 | |
| DH-28P395-13 | 12.0 | 18 | ≤200 | 15 | ≤1000 | 20.04 | |
| DH-28P395-14 | 12.0 | 13 | ≤200 | 11 | ≤1000 | 27.72 | |
| DH-28P395-15 | 12.0 | 14 | ≤200 | 12 | ≤1000 | 20.35 | |
| DH-28P395-16 | 12.0 | 10 | ≤200 | 9 | ≤1000 | 25* | |
1. Customizable output shaft dimensions.
2. Motor voltage can be 6V, 12V, 24V or else, while motor speed and torque can be adjusted.
3. The gearbox can also match with other motors.
