30mm 2953 Planetary gear motor is applied to Power Lift Gate
| MOQ: | 1000 |
| Standard Packaging: | Cartoon Box |
| Delivery Period: | 45days |
| Payment Method: | T/T |
| Supply Capacity: | 50000PCS/months |
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE-EMC,UL
Model Number
DH-28P2953-01
Product Description

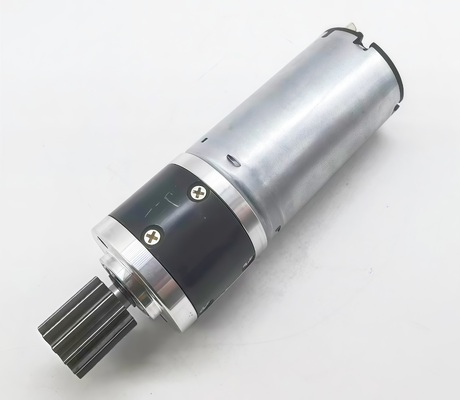

This is 2953 Planetary gear motor is applied to Power Lift Gate.
Features:
- Compensating carbon brush.
- long lifetime and low noise.
- Optional gearbox and encoder.
- Customizable IP class.
- Customizable motor performance.
- Interference suppression optional.
Application:
- Food and Beverage
- Laboratory Instrumentation
- Medical Equipment
- Semiconductor
- Business Machines
- Industrial Automation
- Transportation
- Automobile parts
Dimensions:
Gear Ratio:
| Gear Ratio Stage | 1 | 2 | 3 | 4 | |
| Gear Ratio | 3.7 | 13.7 | 51.0 | 187 | |
| 5.2 | 19.0 | 71.0 | 262 | ||
| 27.0 | 99.0 | 367 | |||
| 139.0 | 514 | ||||
| 720 | |||||
| Length(mm) | 23.5 | 29.7 | 35.9 | 42.1 | |
| Efficiency(%) | 80% | 70% | 60% | 50% | |
| Rated tolerance torque(Kgf.cm Max.) | 3.0 | 8.0 | 18.0 | 25.0 | |
| Max momentary tolerance torque (Kgf.cm) | 9.0 | 24.0 | 54.0 | 75.0 | |
Reference Data:
| Model | Voltage | No Load | Rated Load | ||||
| Nominal | Speed | Current | Speed | Current | Torque | ||
| R/Min | mA | R/Min | mA | Kgf.cm | |||
| DH-30P2953-01 | 9.0 | 1081 | ≤400 | 865 | ≤2500 | 1.33 | |
| DH-30P2953-02 | 9.0 | 772 | ≤400 | 618 | ≤2500 | 1.86 | |
| DH-30P2953-03 | 9.0 | 292 | ≤400 | 234 | ≤2500 | 4.32 | |
| DH-30P2953-04 | 9.0 | 211 | ≤400 | 168 | ≤2500 | 5.99 | |
| DH-30P2953-05 | 9.0 | 148 | ≤400 | 119 | ≤2500 | 8.51 | |
| DH-30P2953-06 | 9.0 | 78 | ≤400 | 63 | ≤2500 | 13.77 | |
| DH-30P2953-07 | 9.0 | 56 | ≤400 | 45 | ≤2500 | 19.17 | |
| DH-30P2953-08 | 9.0 | 40 | ≤400 | 32 | ≤2500 | 25* | |
| DH-30P2953-09 | 9.0 | 29 | ≤400 | 23 | ≤2500 | 25* | |
| DH-30P2953-10 | 9.0 | 21 | ≤400 | 17 | ≤2500 | 25* | |
| DH-30P2953-11 | 9.0 | 15 | ≤400 | 12 | ≤2500 | 25* | |
| DH-30P2953-12 | 9.0 | 11 | ≤400 | 9 | ≤2500 | 25* | |
| DH-30P2953-13 | 9.0 | 8 | ≤400 | 6 | ≤2500 | 25* | |
| DH-30P2953-14 | 9.0 | 6 | ≤400 | 4 | ≤2500 | 25* | |
1. Customizable output shaft dimensions.
2. Motor voltage can be 6V, 12V, 24V or else, while motor speed and torque can be adjusted.
3. The gearbox can also match with other motors.
