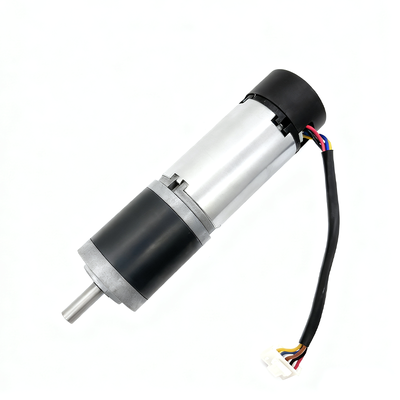

32mm 32P3157 planetary gear motor with encoder
| MOQ: | 1000 |
| Price: | US$33.5 |
| Standard Packaging: | Cartoon Box |
| Delivery Period: | 45days |
| Payment Method: | T/T |
| Supply Capacity: | 50000PCS/months |
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE-EMC,UL
Model Number
DH-32P3157
Product Description
This is 32mm planetary gear motor with hall encoder.
Features:
- Voltage: 6~24VDC
- Speed: 1-6000RPM
- Torque: 1-25Kgf.cm
- High Torque in Small Size
- CW/CCW Running
- Brush dc motor
- Low noise
Application:
- Food and Beverage
- Laboratory Instrumentation
- Medical Equipment
- Semiconductor
- Business Machines
- Industrial Automation
- Transportation
- Automobile parts
Dimensions:
Gear Ratio:
| Gear Ratio Stage | 1 | 2 | 3 | 4 | |
| Gear Ratio | 3.7 | 13.7 | 51.0 | 187 | |
| 5.2 | 19.0 | 71.0 | 262 | ||
| 27.0 | 99.0 | 367 | |||
| 139.0 | 514 | ||||
| 720 | |||||
| Length(mm) | 24.9 | 31.1 | 37.3 | 43.5 | |
| Efficiency(%) | 80% | 70% | 60% | 50% | |
| Rated tolerance torque(Kgf.cm Max.) | 3.0 | 8.0 | 18.0 | 25.0 | |
| Max momentary tolerance torque (Kgf.cm) | 9.0 | 24.0 | 54.0 | 75.0 | |
Reference Data:
| Model | Voltage | No Load | Rated Load | ||||
| Speed | Current | Speed | Current | Torque | |||
| Nominal | R/Min | mA | R/Min | mA | Kgf.cm | ||
| DH-32P3157-01 | 12.0 | 1622 | ≤400 | 1378 | ≤2500 | 0.34 | |
| DH-32P3157-02 | 12.0 | 1158 | ≤400 | 985 | ≤2500 | 0.48 | |
| DH-32P3157-03 | 12.0 | 438 | ≤400 | 372 | ≤2500 | 1.11 | |
| DH-32P3157-04 | 12.0 | 316 | ≤400 | 268 | ≤2500 | 1.54 | |
| DH-32P3157-05 | 12.0 | 222 | ≤400 | 189 | ≤2500 | 2.19 | |
| DH-32P3157-06 | 12.0 | 118 | ≤400 | 100 | ≤2500 | 3.55 | |
| DH-32P3157-07 | 12.0 | 85 | ≤400 | 72 | ≤2500 | 4.94 | |
| DH-32P3157-08 | 12.0 | 61 | ≤400 | 52 | ≤2500 | 6.89 | |
| DH-32P3157-09 | 12.0 | 43 | ≤400 | 37 | ≤2500 | 9.67 | |
| DH-32P3157-10 | 12.0 | 32 | ≤400 | 27 | ≤2500 | 10.85 | |
| DH-32P3157-11 | 12.0 | 23 | ≤400 | 19 | ≤2500 | 15.20 | |
| DH-32P3157-12 | 12.0 | 16 | ≤400 | 14 | ≤2500 | 21.29 | |
| DH-32P3157-13 | 12.0 | 12 | ≤400 | 10 | ≤2500 | 25* | |
| DH-32P3157-14 | 12.0 | 8 | ≤400 | 7 | ≤2500 | 25* | |
NOTES:
1. Customizable output shaft dimensions.
2. Motor voltage can be 6V, 12V, 24V or else, while motor speed and torque can be adjusted.
3. The gearbox can also match with other motors.
