36mm 36P555 planetary gear motor
| MOQ: | 1000 |
| Standard Packaging: | Cartoon Box |
| Delivery Period: | 45days |
| Payment Method: | T/T |
| Supply Capacity: | 50000PCS/months |

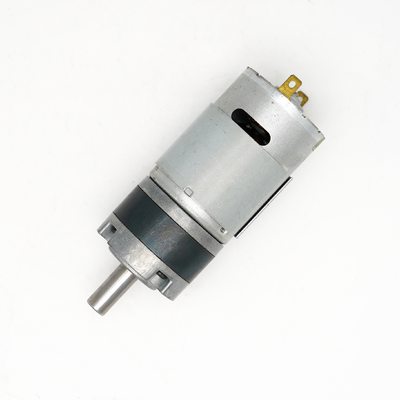

This is a 36mm 36P555 planetary gear motor.
The 36mm planetary gear reduction motor is a power transmission device that integrates a miniature DC motor (brushed or brushless) with a precise planetary gear reduction box. The "36mm" in its name refers to the outer diameter size of the gearbox housing or the entire component. It falls under the category of small and medium-sized micro-special motors. This type of product is named because its core gear structure is similar to the way planets orbit the sun in the solar system, featuring small size, high torque, high efficiency, and smooth operation. It is widely used in automated equipment where space is limited and high power performance is required.
As the core execution component of industrial automation, robotics technology and intelligent hardware, the 36mm planetary gear motor achieves speed reduction and torque amplification through multiple gear meshing, while maintaining the coaxial design of the input shaft and output shaft. This significantly optimizes the layout efficiency of the mechanical structure.
- Voltage: 6~220VDC
- Speed: 1-6000RPM
- Torque: 1-25Kgf.cm
- High Torque in Small Size
- CW/CCW Running
- Brush dc motor
- Low noise
With its small size, high torque and high precision, the 32mm planetary gear motor is widely used in the following fields:
Smart Home and Security: Electric curtain rail, automatic window opener, intelligent door lock drive, monitoring pan-tilt rotation mechanism.
Medical Devices: Infusion pump, surgical robot joint, dental equipment, diagnostic instrument precision transmission.
Industrial Automation and Robotics: AGV cart steering wheel, robotic hand end effector, precision dispensing machine, semiconductor packaging equipment.
Automotive Electronics: Electric seat adjustment, window lift, air conditioning damper control, vehicle-mounted camera telescopic mechanism.
Precision Instruments and Office Equipment: ATM machine cash dispensing module, printer paper feeding mechanism, optical instrument focusing motor, financial equipment.
New Energy and Transportation: Electric bicycle instrument drive, small unmanned aerial vehicle pan-tilt, intelligent traffic sign.
- Food and Beverage
- Laboratory Instrumentation
- Medical Equipment
- Semiconductor
- Business Machines
- Industrial Automation
- Transportation
- Automobile parts
Gear Ratio:
| Gear Ratio Stage | 1 | 2 | 3 | 4 | 5 | ||
| Gear Ratio | 3.7 | 13.7 | 51.0 | 187 | 699 | 3766 | |
| 5.2 | 19.0 | 71.0 | 262 | 977 | |||
| 27.0 | 99.0 | 367 | 1367 | ||||
| 139.0 | 514 | 1911 | |||||
| 720 | 2672 | ||||||
| Length(mm) | 25.5 | 32.5 | 39.5 | 46.5 | 54.0 | ||
| Efficiency(%) | 80% | 70% | 60% | 50% | 40% | 40% | |
| Rated tolerance torque(Kgf.cm Max.) | 5.0 | 15.0 | 50.0 | 50.0 | 50.0 | 50.0 | |
| Max momentary tolerance torque (Kgf.cm) | 15.0 | 50.0 | 150.0 | 150.0 | 150.0 | 150.0 | |
| Model | Voltage | No Load | Rated Load | ||||
| Nominal | Speed | Current | Speed | Current | Torque | ||
| R/Min | mA | R/Min | mA | Kgf.cm | |||
| DH-36P555-01 | 24.0 | 1622 | ≤400 | 1351 | ≤1300 | 0.95 | |
| DH-36P555-02 | 24.0 | 1158 | ≤400 | 965 | ≤1300 | 1.33 | |
| DH-36P555-03 | 24.0 | 438 | ≤400 | 365 | ≤1300 | 3.07 | |
| DH-36P555-04 | 24.0 | 316 | ≤400 | 263 | ≤1300 | 4.26 | |
| DH-36P555-05 | 24.0 | 222 | ≤400 | 185 | ≤1300 | 6.05 | |
| DH-36P555-06 | 24.0 | 118 | ≤400 | 98 | ≤1300 | 9.79 | |
| DH-36P555-07 | 24.0 | 85 | ≤400 | 70 | ≤1300 | 13.63 | |
| DH-36P555-08 | 24.0 | 61 | ≤400 | 51 | ≤1300 | 19.01 | |
| DH-36P555-09 | 24.0 | 43 | ≤400 | 36 | ≤1300 | 26.69 | |
| DH-36P555-10 | 24.0 | 32 | ≤400 | 27 | ≤1300 | 29.92 | |
| DH-36P555-11 | 24.0 | 23 | ≤400 | 19 | ≤1300 | 41.92 | |
| DH-36P555-12 | 24.0 | 16 | ≤400 | 14 | ≤1300 | 50* | |
| DH-36P555-13 | 24.0 | 12 | ≤400 | 10 | ≤1300 | 50* | |
| DH-36P555-14 | 24.0 | 8 | ≤400 | 7 | ≤1300 | 50* | |
| DH-36P555-15 | 24.0 | 9 | ≤400 | 7 | ≤1300 | 50* | |
| DH-36P555-16 | 24.0 | 6 | ≤400 | 5 | ≤1300 | 50* | |
NOTES:
1. Customizable output shaft dimensions.
2. Motor voltage can be 6V, 12V, 24V or else, while motor speed and torque can be adjusted.
3. The gearbox can also match with other motors.
