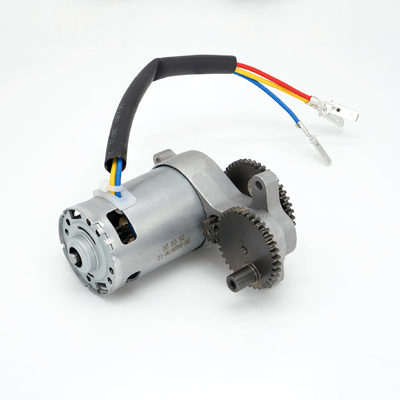

12V Olive harvester brushless gear motor
| MOQ: | 500 |
| Price: | 35€ |
| Standard Packaging: | Cartoon Box |
| Delivery Period: | 45days |
| Payment Method: | T/T |
| Supply Capacity: | 50000PCS/months |
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE, RoHS
Model Number
DH-72S4267-03
RATED VOLTAGE:
12V
NO LOAD SPEED:
1100RPM
NO LOAD SPEED CURRENT:
6A MAX
RATED SPEED:
1100RPM
RATED CURRENT:
60A MAX
RATED TORQUE:
5Nm
RATED OUTPOWER:
720W MAX
STALL TORQUE:
20Nm
STALL CURRENT:
135A MAX
Magnetic Material:
No Magnet
Product Description
This is a custom-developed brushless gear motor for olive harvesters, featuring high torque and long lifespan. It is a patented product specially designed for high-end products by us.
Features:
- 12V, 21V, 36V, 44V
- 20~10000RPM
- Rated outpower 720W
- BLDC motor with Metal gear
- Compliant with the CE and RoHS directives
- Accept customization
Application:
- Olive harvester
Dimensions:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATNG RANGE |
NOMNAL | Speed | Current | Speed | Current | Torque | Output | Eff | Current | Torque | |||||
| RPM | A | RPM | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||||
| DH-B4267M-01 | 9.0 - 15.0 | 12.0V CONSTANT | 22000 | 3.9 | 18803 | 22.93 | 1190.034 | 116.67 | 229.72 | 83.36 | 134.87 | 8188 | 802.8 | ||
| DH-B4267M-02 | 9.0 - 15.0 | 12.0V CONSTANT | 15600 | 2.4 | 13759 | 17.93 | 1183.2 | 116 | 168 | 78.21 | 133.9 | 10078 | 988 | ||
| DH-B4267M-03 | 27.0 - 42.0 | 30.0V CONSTANT | 15600 | 0.77 | 14118 | 7.33 | 1260.312 | 123.56 | 182 | 82.9 | 69.88 | 13260 | 1300 | ||
| DH-B4267M-04 | 36.0 - 54.0 | 44.0V CONSTANT | 20252 | 1.06 | 17579 | 6.97 | 1352.928 | 132.64 | 244 | 79.51 | 45.83 | 10240.8 | 1004 | ||
