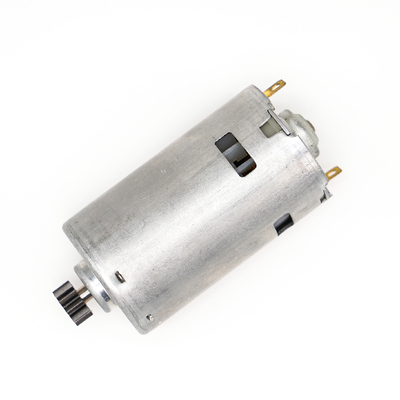

High quality RS785H brush dc motor for olive harvesters

High quality RS785H brush dc motor for olive harvesters

MOQ: 1000
Price: US$6.70
Standard Packaging: Cartoon Box
Delivery Period: 45days
Payment Method: T/T
Supply Capacity: 50000PCS/months
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE, RoHS
Model Number
DH-RS785PH-30
Document
RS785PH.pdf
RATED VOLT:
30VDC
NO LOAD SPEED:
15540RPM±10%
NO LOAD CURRENT:
1A MAX
RATED SPEED:
14094RPM±10%
RATED CURRENT:
8A MAX
RATED TORQUE:
119.2mNm
STALL TORQUE:
1276mNm
STALL CURRENT:
72.38A
MOTOR TYPE:
Brush Dc Motor
Product Description

Our RS785 high-performance DC brushed motor can directly replace JOHNSON's 1070311. It features a Compensating carbon brush and two gearboxes, achieving high torque and long lifespan. It is mainly applied in agricultural tools such as olive harvesters and other gardening equipment.

Features:
  • Compensating carbon brush
  • Ball bearing
  • High efficiency
  • Long life
Application:
  • Olive harvesters
  • Violent fan
  • Power Tools
  • Food and Beverage
  • Laboratory Instrumentation
  • Medical Equipment
  • Semiconductor
  • Business Machines
  • Industrial Automation
  • Transportation
Dimensions:

High quality RS785H brush dc motor for olive harvesters 0

MOTOR DATA:
MODEL VOLTAGE NO LOAD AT MAXIMUM EFFICIENCY STALL
OPERATING
RANGE		 NOMINAL Speed Current Speed Current Torque Output Eff Current Torque
RPM A RPM A g-cm mN-m W % A g-cm mN-m
DH-RS785PH-12 9.0 - 15.0 12.0V CONSTANT 20000 2.40 16584 14.77 759 74.41 129 74 83.39 5377 527.16
DH-RS785PH-18 15.0 - 21.0 18.0V CONSTANT 17000 1.50 15309 13.58 1294.686 126.93 193.48 79.1 123 13017.852 1276.26
DH-RS785PH-30 27.0 - 42.0 30.0V CONSTANT 15540 0.72 14094 7.46 1215.84 119.2 175.53 78 72.38 13015.2 1276
DH-RS785PH-36 27.0 - 42.0 36.0V CONSTANT 17000 0.72 15421 6.56 1270.716 124.58 190.57 79.5 61.52 13292.64 1303.2
NOTES:
  • Customizable output shaft dimensions.
  • Motor voltage can be 12V, 24V,36V,44V or else, while motor speed and torque can be adjusted.
