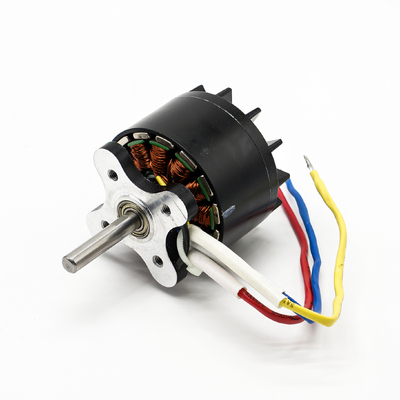

12V B4920 brushless dc motor for olive harvesters

12V B4920 brushless dc motor for olive harvesters

MOQ: 1000
Price: 21.7€
Standard Packaging: Cartoon Box
Delivery Period: 45days
Payment Method: T/T
Supply Capacity: 50000PCS/months
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE, RoHS
Model Number
DH-B4920-12
Document
B4920.pdf
RATED VOLT:
12VDC
NO LOAD SPEED:
8812RPM±10%
NO LOAD CURRENT:
4.3A
RATED SPEED:
7690RPM±10%
RATED CURRENT:
29.43A
RATED TORQUE:
340mNm
STALL TORQUE:
2.64Nm
STALL CURRENT:
200A
MOTOR TYPE:
Brushless Dc Motor
DRIVER:
Can Be Customized
Product Description

Our B4920 high-performance DC brushless motor is equipped with high-performance silicon steel sheets, heat-resistant magnets and ball bearings, achieving high torque and long lifespan. It is mainly applied in agricultural tools such as olive harvesters and other gardening equipment.

Features:
  • Outer rotor BLDC motor
  • Ball bearing
  • High efficiency
  • Long life
  • NO EMI
Application:
  • Olive harvesters
  • Violent fan
  • Power Tools
  • Food and Beverage
  • Laboratory Instrumentation
  • Medical Equipment
  • Semiconductor
  • Business Machines
  • Industrial Automation
  • Transportation
Dimensions:

12V B4920 brushless dc motor for olive harvesters 0

MOTOR DATA:

MODEL

 VOLTAGE NO   LOAD AT   MAXIMUM   EFFICIENCY STALL
OPERATNG
RANGE		 NOMNAL Speed Current Speed Current Torque Output Eff Current Torque
RPM A RPM A Kgf-cm N-m W % A Kgf-cm N-m
DH-B4920-12 9.0 - 15.0 12.0V CONSTANT 8812 4.3 7690 29.46 3.43  0.34  270.99 76.56 201 26.95  2.64
DH-B4920-36 27.0 - 42.0 36.0V CONSTANT 8271 1.52 7055 8.82 3.39  0.33  245.44 77.18 51.2 23.06  2.26
DH-B4920-24 18.0 - 27.0 24.0V CONSTANT 10000 2.4 8801 15.41 3.16  0.31 285.97 77.22 113 26.32  2.58
NOTES:
  • Customizable output shaft dimensions.
  • Motor voltage can be 12V, 24V,36V,44V or else, while motor speed and torque can be adjusted.
  • Can be customized driver
