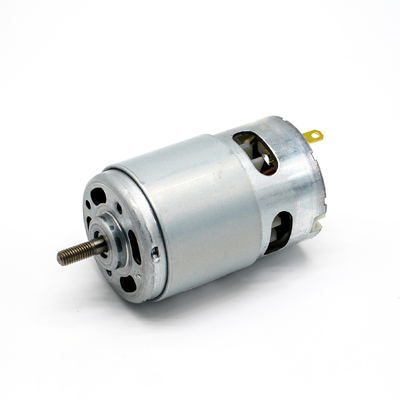

High quality RS775H brush dc motor for olive harvesters
| MOQ: | 1000 |
| Price: | US$5.47 |
| Standard Packaging: | Cartoon Box |
| Delivery Period: | 45days |
| Payment Method: | T/T |
| Supply Capacity: | 50000PCS/months |
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE, RoHS
Model Number
DH-RS775PH-01
Document
RATED VOLT:
12VDC
NO LOAD SPEED:
20000RPM±10%
NO LOAD CURRENT:
5A MAX
RATED SPEED:
17301RPM±10%
RATED CURRENT:
25A MAX
RATED TORQUE:
107.94mNm
STALL TORQUE:
843.73mNm
STALL CURRENT:
139.88A
MOTOR TYPE:
Brush Dc Motor
Product Description
The RS775H is a high-performance DC permanent magnet brushed motor, belonging to the "775 series" standard model widely used in both industrial and consumer applications. This motor is renowned for its compact structure, high output power, strong torque, and simple control. It is the core power component in various automated equipment, electric tools, and household appliances. As a brushed motor, it achieves current switching through carbon brushes and commutators, featuring low cost, large starting torque, and fast response speed.
Features:
- - Carbon brush
- - Ball bearing
- - High efficiency
- - Long life
Application:
- Olive harvesters
- Violent fan
- Power Tools
- Food and Beverage
- Laboratory Instrumentation
- Medical Equipment
- Semiconductor
- Business Machines
- Industrial Automation
- Transportation
Dimensions:
MOTOR DATA:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATNG RANGE |
NOMNAL | Speed | Current | Speed | Current | Torque | Output | Eff | Current | Torque | |||||
| RPM | A | RPM | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||||
| DH-RS775PH-01 | 6.0 - 14.0 | 12.0V CONSTANT | 20000 | 4.0 | 17301 | 21.2 | 1101 | 107.94 | 195 | 77.59 | 139.88 | 8606 | 843.73 | ||
| DH-RS775PH-02 | 6.0 - 20.0 | 18.0V CONSTANT | 21000 | 3.3 | 18904 | 18.55 | 1336 | 131 | 259 | 78 | 130.4 | 11170 | 1095 | ||
| DH-RS775PH-03 | 18.0 - 36.0 | 36.0V CONSTANT | 21500 | 1.75 | 18618 | 11.2 | 1446 | 142 | 276 | 71 | 71.5 | 10659 | 1045 | ||
| DH-RS775PH-04 | 6.0 - 36.0 | 24.0V CONSTANT | 7000 | 0.50 | 5862 | 2.19 | 620 | 61 | 37.2 | 72 | 14.03 | 4519 | 443 | ||
NOTES:
- Customizable output shaft dimensions.
- Motor voltage can be 12V, 24V,36V,44V or else, while motor speed and torque can be adjusted.
