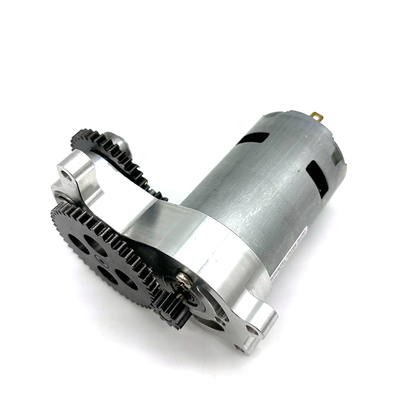

30V Olive harvester brushed gear motor
| MOQ: | 2000 |
| Standard Packaging: | Cartoon Box |
| Delivery Period: | 45days |
| Payment Method: | T/T |
| Supply Capacity: | 50000PCS/months |
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE, RoHS
Model Number
DH-72S785-01
RATED VOLTAGE:
30 V
NO LOAD SPEED:
1100RPM
NO LOAD SPEED CURRENT:
2A MAX
RATED SPEED:
1100RPM
RATED CURRENT:
10A MAX
RATED TORQUE:
2Nm
RATED OUTPOWER:
530W
STALL TORQUE:
10Nm
STALL CURRENT:
73A MAX
Magnetic Material:
No Magnet
Product Description
This is a custom-developed brushed gear motor for olive harvesters, featuring high torque and long lifespan. It is a patented product specially designed for high-end products by us.
Features:
- 12V, 21V, 36V, 44V
- 1100RPM
- Rated outpower 530W
- 30V Brush motor with Metal gear
- Compliant with the CE and RoHS directives
- Accept customization
Application:
- Olive harvester
Dimensions:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||||
| OPERATNG RANGE |
NOMNAL | Speed | Current | Speed | Current | Torque | Output | Eff | Current | Torque | |||||
| RPM | A | RPM | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||||
| DH-RS785PH-12 | 9.0 - 15.0 | 12.0V CONSTANT | 20000 | 2.40 | 16584 | 14.77 | 759 | 74.41 | 129 | 74 | 83.39 | 5377 | 527.16 | ||
| DH-RS785PH-18 | 15.0 - 21.0 | 18.0V CONSTANT | 17000 | 1.50 | 15309 | 13.58 | 1294.686 | 126.93 | 193.48 | 79.1 | 123 | 13017.852 | 1276.26 | ||
| DH-RS785PH-30 | 27.0 - 42.0 | 30.0V CONSTANT | 15540 | 0.72 | 14094 | 7.46 | 1215.84 | 119.2 | 175.53 | 78 | 72.38 | 13015.2 | 1276 | ||
| DH-RS785PH-36 | 27.0 - 42.0 | 36.0V CONSTANT | 17000 | 0.72 | 15421 | 6.56 | 1270.716 | 124.58 | 190.57 | 79.5 | 61.52 | 13292.64 | 1303.2 | ||
