32mm 32P545 planetary gear motor with hall encoder
| MOQ: | 1000 |
| Price: | US$33.5 |
| Standard Packaging: | Cartoon Box |
| Delivery Period: | 45days |
| Payment Method: | T/T |
| Supply Capacity: | 50000PCS/months |

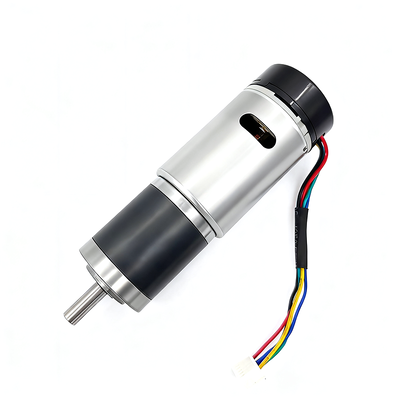

This is a 32mm 32P545 planetary gear motor with hall encoder.
The 32mm planetary gear reduction motor is a drive device that precisely integrates a miniature DC motor (such as a hollow cup motor, brushed/non-brushed DC motor) with a planetary gear box having an outer diameter of 32mm. This series of products, with their compact coaxial design, achieves high torque output and precise speed control in a very small space, making it the core power component for high-end automation equipment, precision instruments, and intelligent hardware. Its core transmission principle is based on the planetary motion model of the solar system. Through the coordinated meshing of the sun gear, planet gear, planet carrier, and inner gear ring, it realizes the diversion transmission of power and efficient reduction.
With its small size, high torque and high precision, the 32mm planetary gear motor is widely used in the following fields:
Smart Home and Security: Electric curtain rail, automatic window opener, intelligent door lock drive, monitoring pan-tilt rotation mechanism.
Medical Devices: Infusion pump, surgical robot joint, dental equipment, diagnostic instrument precision transmission.
Industrial Automation and Robotics: AGV cart steering wheel, robotic hand end effector, precision dispensing machine, semiconductor packaging equipment.
Automotive Electronics: Electric seat adjustment, window lift, air conditioning damper control, vehicle-mounted camera telescopic mechanism.
Precision Instruments and Office Equipment: ATM machine cash dispensing module, printer paper feeding mechanism, optical instrument focusing motor, financial equipment.
New Energy and Transportation: Electric bicycle instrument drive, small unmanned aerial vehicle pan-tilt, intelligent traffic sign
- Voltage: 6~220VDC
- Speed: 1-6000RPM
- Torque: 1-25Kgf.cm
- High Torque in Small Size
- CW/CCW Running
- Brush dc motor
- Low noise
- Food and Beverage
- Laboratory Instrumentation
- Medical Equipment
- Semiconductor
- Business Machines
- Industrial Automation
- Transportation
- Automobile parts
Gear Ratio:
| Gear Ratio Stage | 1 | 2 | 3 | 4 | |
| Gear Ratio | 3.7 | 13.7 | 51.0 | 187 | |
| 5.2 | 19.0 | 71.0 | 262 | ||
| 27.0 | 99.0 | 367 | |||
| 139.0 | 514 | ||||
| 720 | |||||
| Length(mm) | 24.9 | 31.1 | 37.3 | 43.5 | |
| Efficiency(%) | 80% | 70% | 60% | 50% | |
| Rated tolerance torque(Kgf.cm Max.) | 3.0 | 8.0 | 18.0 | 25.0 | |
| Max momentary tolerance torque (Kgf.cm) | 9.0 | 24.0 | 54.0 | 75.0 | |
| Model | Voltage | No Load | Rated Load | ||||
|---|---|---|---|---|---|---|---|
| Nominal | Speed | Current | Speed | Current | Torque | ||
| R/Min | mA | R/Min | mA | Kgf.cm | |||
| DH-32P545-01 | 24.0 | 1622 | ≤250 | 1378 | ≤1200 | 0.84 | |
| DH-32P545-02 | 24.0 | 1158 | ≤250 | 985 | ≤1200 | 1.18 | |
| DH-32P545-03 | 24.0 | 438 | ≤250 | 372 | ≤1200 | 2.72 | |
| DH-32P545-04 | 24.0 | 316 | ≤250 | 268 | ≤1200 | 3.78 | |
| DH-32P545-05 | 24.0 | 222 | ≤250 | 189 | ≤1200 | 5.37 | |
| DH-32P545-06 | 24.0 | 118 | ≤250 | 100 | ≤1200 | 8.69 | |
| DH-32P545-07 | 24.0 | 85 | ≤250 | 72 | ≤1200 | 12.10 | |
| DH-32P545-08 | 24.0 | 61 | ≤250 | 52 | ≤1200 | 16.87 | |
| DH-32P545-09 | 24.0 | 43 | ≤250 | 37 | ≤1200 | 23.69 | |
| DH-32P545-10 | 24.0 | 32 | ≤250 | 27 | ≤1200 | 25* | |
| DH-32P545-11 | 24.0 | 23 | ≤250 | 19 | ≤1200 | 25* | |
| DH-32P545-12 | 24.0 | 16 | ≤250 | 14 | ≤1200 | 25* | |
| DH-32P545-13 | 24.0 | 12 | ≤250 | 10 | ≤1200 | 25* | |
| DH-32P545-14 | 24.0 | 8 | ≤250 | 7 | ≤1200 | 25* | |
NOTES:
1. Customizable output shaft dimensions.
2. Motor voltage can be 6V, 12V, 24V or else, while motor speed and torque can be adjusted.
3. The gearbox can also match with other motors.
