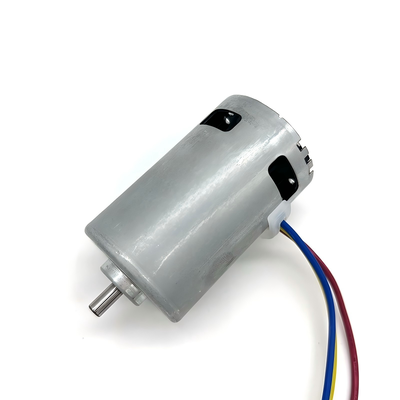

12V B4267M brushless dc motor Used in olive harvesters

12V B4267M brushless dc motor Used in olive harvesters

MOQ: 2000
Price: US$20
Standard Packaging: Cartoon Box
Delivery Period: 45days
Payment Method: T/T
Supply Capacity: 50000PCS/months
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE, RoHS
Model Number
DH-B4267M-01
Document
DH-B4267M.pdf
RATED VOLT:
12VDC
NO LOAD SPEED:
25000RPM±10%
NO LOAD CURRENT:
6A MAX
RATED SPEED:
20000RPM±10%
RATED CURRENT:
60A MAX
RATED TORQUE:
300Nm Min.
IP RATING:
IP00
MOTOR TYPE:
Brushless Dc Motor
Product Description

B4267M is a high-performance brushless DC motor (BLDC) specifically designed for agricultural automation equipment. It has been optimized for the operational requirements of olive harvesters in complex field environments. This motor integrates advanced electronic commutation technology and high-power density permanent magnet structure, aiming to provide stable, efficient and durable power output for olive harvesting machinery, significantly enhancing the automation level and economic benefits of the harvesting operation.

The B4267M DC brushless motor, with its high efficiency, high reliability, low maintenance cost and outstanding control performance, has become the ideal power core for modern olive harvesters. It not only enhances the automation level and fruit quality of the harvesting process, but also brings significant economic value to farmers and agricultural enterprises by reducing energy consumption and maintenance costs. With the development of smart agriculture, the B4267M will continue to drive the olive planting industry towards more efficient and environmentally friendly directions.

Features:
  • Voltage: 12~44VDC
  • High Torque in Small Size
  • CW/CCW Running
  • Brushless dc motor
  • Built-in rotor fan
  • External drive
Application:
  • Olive harvesters
  • Violent fan
  • Power Tools
Dimensions:

12V B4267M brushless dc motor Used in olive harvesters 0

MOTOR DATA:
MODEL           VOLTAGE     NO LOAD AT MAXIMUM EFFICIENCY                STALL
OPERATNG
RANGE		 NOMNAL Speed Current Speed Current Torque Output Eff Current Torque
RPM A RPM A g-cm mN-m W %    A g-cm mN-m
DH-B4267M-01 9.0 - 15.0 12.0V CONSTANT 22000 3.9 18803 22.93 1190.034 116.67 229.72 83.36 134.87 8188 802.8
DH-B4267M-02 9.0 - 15.0 12.0V CONSTANT 15600 2.4 13759 17.93 1183.2 116 168 78.21 133.9 10078 988
DH-B4267M-03 27.0 - 42.0 30.0V CONSTANT 15600 0.77 14118 7.33 1260.312 123.56 182 82.9 69.88 13260 1300
DH-B4267M-04 36.0 - 54.0 44.0V CONSTANT 20252 1.06 17579 6.97 1352.928 132.64 244 79.51 45.83 10240.8 1004
NOTES:
  • Customizable output shaft dimensions.
  • Motor voltage can be 12V, 24V,36V,44V or else, while motor speed and torque can be adjusted.
  • The drive can be customized.
