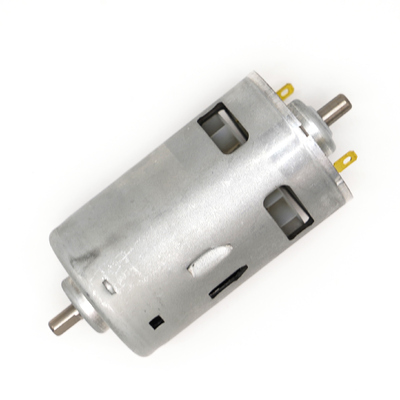

RS997H Brush DC Motor High Torque for Industrial Applications

RS997H Brush DC Motor High Torque for Industrial Applications

MOQ: 1000
Standard Packaging: Cartoon Box
Delivery Period: 45days
Payment Method: T/T
Supply Capacity: 50000PCS/months
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE, RoHS
Model Number
DH-RS997-5036
Document
997.pdf
RATED VOLT:
24VDC
NO LOAD SPEED:
4900RPM±10%
NO LOAD CURRENT:
1A MAX
RATED SPEED:
4198RPM±10%
RATED CURRENT:
3A MAX
RATED TORQUE:
117mNm
STALL TORQUE:
1211mNm
STALL CURRENT:
25.95A
MOTOR TYPE:
Brush Dc Motor
Product Description

RS997H Brush DC Motor 30VDC 15540RPM with 1276mNm Stall Torque for Industrial Applications

Features:
  • Compensating carbon brush
  • Ball bearing
  • High efficiency
  • Long life
Application:
  • Power Tools
  • Food and Beverage
  • Laboratory Instrumentation
  • Medical Equipment
  • Semiconductor
  • Business Machines
  • Industrial Automation
  • Transportation
Dimensions:

RS997H Brush DC Motor High Torque for Industrial Applications 0

MOTOR DATA:

RS997H Brush DC Motor High Torque for Industrial Applications 1NOTES:
  • Customizable output shaft dimensions.
  • Motor voltage can be 12V, 24V,36V,44V or else, while motor speed and torque can be adjusted.
