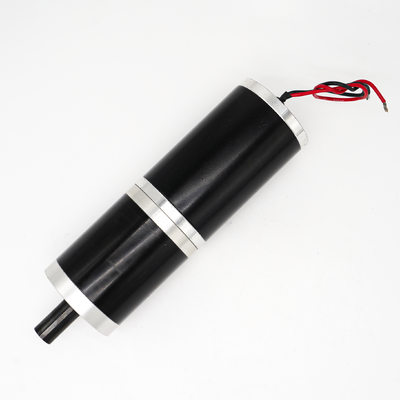

60mm 60P6095 24v dc planetary gear motor
| MOQ: | 500 |
| Price: | US$89 |
| Standard Packaging: | Cartoon Box |
| Delivery Period: | 45days |
| Payment Method: | T/T |
| Supply Capacity: | 50000PCS/months |
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE-EMC,
Model Number
DH-60P60101-12
Document
RATED VOLT:
24VDC
NO LOAD SPEED:
11RPM±10%
NO LOAD CURRENT:
1A MAX
RATED SPEED:
10RPM±10%
RATED CURRENT:
5A MAX
RATED TORQUE:
23Nm Min.
IP RATING:
IP54
MOTOR TYPE:
PMDC MOTOR
RATIO:
329 :1
Product Description
The 60P6095 planetary gear brushed motor is a mature, reliable and cost-effective transmission solution. While retaining the simplicity of control and cost advantage of brushed motors, it achieves high torque output and compact design through the planetary gear structure. For applications that do not require extremely long lifespan (such as tens of thousands of hours), but have high requirements for instantaneous torque, start-up performance and cost control, the 60P60ZY is an ideal choice.
Features:
- Voltage: 6~230VDC
- Speed: 5-3500RPM
- Torque: 5-450Kgf.cm
- High Torque in Small Size
- CW/CCW Running
- Brush dc motor
- Low noise
- Tcustomized IP68.
Application:
The 60P6095 planetary gear motor, with its outstanding performance, is widely applied in the following fields:
- Industrial Automation: Used for joint drive of robotic arms, conveyor belt control, automatic assembly lines and tension controllers.
- Services and Special Robots: As the wheeled drive unit of mobile robots or the actuators of robotic hands, requiring high precision and high response speed.
- Smart Home and Security: Applied to smart door locks, electric curtains, automatic doors and surveillance pan-tilt cameras.
- Medical Devices: For infusion pumps, surgical robot-assisted drive, etc., equipment with extremely high requirements for noise and stability.
- Automotive Electronics: Electric vehicle seat adjustment, window raising/lowering, air conditioning vent control, etc.
Dimensions:
Gear Ratio:
| Gear Ratio Stage | 1 | 2 | 3 | 4 | |
|---|---|---|---|---|---|
| Gear Ratio | 3.7 | 12.7 | 45.1 | 161 | |
| 5.1 | 18.2 | 64.4 | 230 | ||
| 26.0 | 92.6 | 329 | |||
| 132.6 | 472 | ||||
| 676 | |||||
| Length(mm) | 37.8 | 49.3 | 60.8 | 72.3 | |
| Efficiency(%) | 80% | 70% | 60% | 50% | |
| Rated tolerance torque(Kgf.cm Max.) | 30.0 | 90.0 | 300.0 | 450.0 | |
| Max momentary tolerance torque (Kgf.cm) | 60.0 | 180.0 | 600.0 | 750.0 | |
Reference Data:
| Model | Voltage | No Load | Rated Load | ||||
|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | |||
| Nominal | R/Min | A | R/Min | A | Kgf.cm | ||
| DH-60P6095-01 | 24.0 | 986 | ≤0.4 | 904 | ≤3.0 | 4.09 | |
| DH-60P6095-02 | 24.0 | 706 | ≤0.4 | 647 | ≤3.0 | 5.71 | |
| DH-60P6095-03 | 24.0 | 283 | ≤0.4 | 260 | ≤3.0 | 12.45 | |
| DH-60P6095-04 | 24.0 | 198 | ≤0.4 | 181 | ≤3.0 | 17.84 | |
| DH-60P6095-05 | 24.0 | 138 | ≤0.4 | 127 | ≤3.0 | 25.48 | |
| DH-60P6095-06 | 24.0 | 80 | ≤0.4 | 73 | ≤3.0 | 37.88 | |
| DH-60P6095-07 | 24.0 | 56 | ≤0.4 | 51 | ≤3.0 | 54.10 | |
| DH-60P6095-08 | 24.0 | 39 | ≤0.4 | 36 | ≤3.0 | 77.78 | |
| DH-60P6095-09 | 24.0 | 27 | ≤0.4 | 25 | ≤3.0 | 111.38 | |
| DH-60P6095-10 | 24.0 | 22 | ≤0.4 | 21 | ≤3.0 | 112.42 | |
| DH-60P6095-11 | 24.0 | 16 | ≤0.4 | 14 | ≤3.0 | 161.00 | |
| DH-60P6095-12 | 24.0 | 11 | ≤0.4 | 10 | ≤3.0 | 230.30 | |
| DH-60P6095-13 | 24.0 | 8 | ≤0.4 | 7 | ≤3.0 | 330.40 | |
| DH-60P6095-14 | 24.0 | 5 | ≤0.4 | 5 | ≤3.0 | 450* | |
NOTES:
- Customizable output shaft dimensions.
- Motor voltage can be 6V, 12V, 24V or else, while motor speed and torque can be adjusted.
- The gearbox can also match with other motors.
