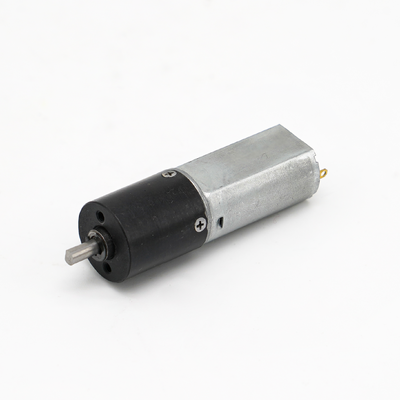

16mm Metal Planetary Gear Motor for Actuator

16mm Metal Planetary Gear Motor for Actuator

MOQ: 1000
Price: US$4.0
Standard Packaging: Cartoon Box
Delivery Period: 45days
Payment Method: T/T
Supply Capacity: 100000PCS/months
Detail Information
Place of Origin
CHINA
Brand Name
DEHE MOTOR
Certification
CE, RoHS
Model Number
DH-16P050-015
RATED VOLTAGE:
12V
NO LOAD SPEED:
4RPM
NO LOAD SPEED CURRENT:
80mA MAX
RATED SPEED:
3RPM
RATED CURRENT:
60A MAX
RATED TORQUE:
0.4Nm
RATED OUTPOWER:
2 MAX
STALL TORQUE:
0.4Nm
STALL CURRENT:
0.5A MAX
Gear Material:
Metal
Product Description

This is a 16mm Metal Planetary Gear Motor for Actuator

Features:

  • Voltage: 6.0-24VDC
  • Speed: 1-1500RPM
  • Torque: 0.1-4Kgf.cm
  • High Torque in Small Size
  • CW/CCW Running

Application:

  • Electric Curtain
  • Safe and Locking
  • Office Automation
  • 3D Digital Technology
  • Electric actuator
  • Food and Beverage
  • Laboratory Instrumentation
  • Medical Equipment
  • Semiconductor
  • Business Machines
  • Industrial Automation
  • Transportation

Dimensions:

16mm Metal Planetary Gear Motor for Actuator 0

Gear Ratio:

Gear Ratio Stage 1 2 3 4 5
Gear Ratio 4 16 64 256 712
4.75 19 76 304 1024

22.5 90 361 1216


107 428 1444



509 2036
Length(mm) 12.2 15.8 19.4 23 26.6
Efficiency(%) 80% 70% 60% 50% 40%
Rated tolerance torque(Kgf.cm Max.) 0.3 0.5 1 3 4
Max momentary tolerance torque (Kgf.cm) 1.5 2 3.5 9.5 12.5

Reference Data:

Model Voltage No Load Rated Load
Nominal Speed Current Speed Current Torque
R/Min mA R/Min mA Kgf.cm
DH-16P050-001 12 2000 ≤80 1500 ≤130 32
DH-16P050-002 12 1684 ≤80 1260 ≤130 38
DH-16P050-003 12 500 ≤80 375 ≤130 112
DH-16P050-004 12 421 ≤80 315 ≤130 133
DH-16P050-005 12 355 ≤80 266 ≤130 157
DH-16P050-006 12 125 ≤80 94 ≤130 384
DH-16P050-007 12 105 ≤80 79 ≤130 456
DH-16P050-008 12 75 ≤80 56 ≤130 642
DH-16P050-009 12 31 ≤80 23 ≤130 1280
DH-16P050-010 12 26 ≤80 20 ≤130 1520
DH-16P050-011 12 16 ≤80 12 ≤130 2545
DH-16P050-012 12 11 ≤80 8 ≤130 2848
DH-16P050-013 12 8 ≤80 6 ≤130 4000*
DH-16P050-014 12 7 ≤80 6 ≤130 4000*
DH-16P050-015 12 4 ≤80 3 ≤130 4000*


NOTES:

1. Customizable output shaft dimensions.　　

2. Motor voltage can be 6V, 12V, 24V or else, while motor speed and torque can be adjusted.

3. The gearbox can also match with other motors.
